Obsidian®

ST Custom HH6 G2

Custom HH for Strat® '6 -Way' Gen2 // NEW

Prix normal
US$119.00
Prix normal
Prix de vente
US$119.00

Super Easy, Solder-less Install
Key Features:

  • New 'Gen2' Model
  • Custom controls for 'HH' Strat®
  • '6-Way' switching system
  • Tunable coil split for fuller split coil sounds
  • Fits Fender® Strat®
  • Fits Squier® Strat® with adjustments

  • Dépêchez-vous 7 éléments en stock!

EXPÉDITION RAPIDE

GARANTIE 5 ANS

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.




Custom HH '6 Way' Gen2 - HH Strat Wiring Harness

We have built the Obsidian 6 Way HH wiring harness for Stratocaster with TUNEABLE DUAL SC (SPLIT COIL) so you can enjoy the full output and clarity of your humbuckers, AND switch them in to 'Split Coil' mode for lower output, single coil goodness that is fine tunable to your liking.

NEW // GEN 2 UPDATES

To improve on our already super popular Custom HH harness we have

  • Added a tuneability function to the coil split - so you can craft your split coil sounds to be fuller and better rounded, or set them to 'quiet' for a more traditional full split.
  • Easier Install - We have moved the push/pull coil split pot to the second tone control position to get it out of the way of the solderless connector, making for an easier install.

TUNABLE ESC (COIL SPLIT)

Turn your humbuckers in to single coils, and back again. To add true versatility to your guitar we build in TUNABLE SC, to split your humbucker to a single-coil for lower output, more dynamic tones.

We incorporate a Coil Split 'Voice' control, which allows you to fine tune the amount of signal that is sent to ground.

  • 'QUIET' = FULL SPLIT (TRADITIONAL COIL SPLIT)
  • 'LOUD' = SEMI SPLIT (LAMBERTONES SPLIT FOR FULLER SPLIT COIL)

TUNABLE SC is built in to your volume controls using push/pull pots, so no extra mods are required to your guitar.

- Requires split coil compatible humbuckers

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SWITCH LAYOUT

Push Pull DOWN

1: Bridge Humbucker
2: Bridge & Neck - Humbucker
3: Neck  - Humbucker

Push Pull UP

1: Bridge - Single Coil
2: Bridge & Neck - Single Coil
3: Neck - Single Coil

CONTROL LAYOUT

Switch: 3 - Way
Control 1: Master Volume
Control 2: Tone Control 1 (Neck)
Control 3: Tone Control 2 (Bridge)


ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching
Side view of the ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching
Top down view of the ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching
Top down view of the ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching

Humbucker Optimized Wiring for - HH Stratocaster®

The Custom HH for Strat® '6 -Way' Gen2 // NEW

  • New 'Gen2' Model
  • Custom controls for 'HH' Strat®
  • '6-Way' switching system
  • Tunable coil split for fuller split coil sounds
  • Fits Fender® Strat®
  • Fits Squier® Strat® with adjustments

Détails du harnais

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.




Custom HH '6 Way' Gen2 - HH Strat Wiring Harness

We have built the Obsidian 6 Way HH wiring harness for Stratocaster with TUNEABLE DUAL SC (SPLIT COIL) so you can enjoy the full output and clarity of your humbuckers, AND switch them in to 'Split Coil' mode for lower output, single coil goodness that is fine tunable to your liking.

NEW // GEN 2 UPDATES

To improve on our already super popular Custom HH harness we have

  • Added a tuneability function to the coil split - so you can craft your split coil sounds to be fuller and better rounded, or set them to 'quiet' for a more traditional full split.
  • Easier Install - We have moved the push/pull coil split pot to the second tone control position to get it out of the way of the solderless connector, making for an easier install.

TUNABLE ESC (COIL SPLIT)

Turn your humbuckers in to single coils, and back again. To add true versatility to your guitar we build in TUNABLE SC, to split your humbucker to a single-coil for lower output, more dynamic tones.

We incorporate a Coil Split 'Voice' control, which allows you to fine tune the amount of signal that is sent to ground.

  • 'QUIET' = FULL SPLIT (TRADITIONAL COIL SPLIT)
  • 'LOUD' = SEMI SPLIT (LAMBERTONES SPLIT FOR FULLER SPLIT COIL)

TUNABLE SC is built in to your volume controls using push/pull pots, so no extra mods are required to your guitar.

- Requires split coil compatible humbuckers

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SWITCH LAYOUT

Push Pull DOWN

1: Bridge Humbucker
2: Bridge & Neck - Humbucker
3: Neck  - Humbucker

Push Pull UP

1: Bridge - Single Coil
2: Bridge & Neck - Single Coil
3: Neck - Single Coil

CONTROL LAYOUT

Switch: 3 - Way
Control 1: Master Volume
Control 2: Tone Control 1 (Neck)
Control 3: Tone Control 2 (Bridge)


Spécifications

BUILT IN HOUSE WITH

  • Potentiometers: Obsidian® Custom CTS® Pots 500K (+/-10%) Split Shaft / 24 Spline
  • Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)
  • Switch: Genuine Oak® 3 Way Switch
  • Jack: Pro-Wired Switchcraft® J11 Mono

Compatibilité

BUILT TO FIT

  • Fits: Fender® HH Stratocaster® - Direct Fit // Right Hand Guitar Only
  • Fits: Squier® HH Stratocaster® - Widen Control holes to 10mm & replace knobs
  • Always Check: Requires Minimum Cavity Depth 29.2mm / 1.15"
  • Knobs: Requires US spec 24 spline knobs
  • Pickups: Built for two humbucker or P90 loaded Strat® (HH)
  • Coil splitting: Requires compatible four conductor humbuckers

DOES NOT FIT

  • Does NOT fit: Left Handed Guitars // Any guitar not described above

Installer

Pour obtenir de l'aide sur l'installation et d'autres ressources, rendez-vous sur notre centre d'informations .

Expédition

Où expédions-nous

Nous expédions actuellement directement à :

  • États-Unis
  • Australie
  • Royaume-Uni
  • Nouvelle-Zélande
  • Hong Kong
  • Islande
  • Norvège
  • Suisse

Pour les autres pays - Voir Revendeurs Internationaux

Les options d'expédition
Nous expédions depuis le Michigan, États-Unis

Veuillez noter qu'en raison de la manière dont les taxes dans l'État sont perçues, nous ne pouvons pas expédier les commandes sur le site Web dans l'État du Michigan. Si vous êtes basé dans le Michigan, veuillez commander via notre boutique Amazon ici car celle-ci est configurée pour collecter les taxes de vente requises. Des excuses pour tout inconvénient causé.

États-Unis

Mode de livraison: Jours ouvrables : Prix ​​(USD)
SUIVI USPS 3 - 5 6,99
LIVRAISON À DOMICILE FEDEX 3 - 5 19,99
ÉCONOMISEUR FEDEX EXPRESS 2 - 4 22,99
ÉCONOMISEUR FEDEX EXPRESS 2 - 4 28,99

Australie

Mode de livraison: Jours ouvrables : Prix ​​(environ $ US)
NZ Post (courrier international) 5 - 10 15,99

Royaume-Uni

Mode de livraison: Jours ouvrables : Prix ​​(GBP £ environ)
NORME INTERNATIONALE DHL 4 - 14 9,97
FEDEX ÉCONOMIE INTERNATIONALE 2 - 6 32,99

Australie

Mode de livraison: Jours ouvrables : Prix ​​(environ $ US)
NZ Post (courrier international) 5 - 10 15,99

Nouvelle-Zélande

Mode de livraison: Jours ouvrables : Prix ​​(environ $ US)
POSTE DE COURRIER 1 - 3 GRATUIT

Reste du monde

Mode de livraison: Jours ouvrables : Prix ​​(environ $ US)
NORME INTERNATIONALE DHL 4 - 14 18,99

Impôts et taxes

Obsidian® NE paie PAS de droits, taxes ou frais de dédouanement.
Les droits et taxes facturés par votre agence douanière locale seront à votre charge.
Si vous habitez en dehors des États-Unis, nous vous recommandons de vérifier auprès de l'agence douanière de votre propre pays ce qu'ils peuvent être avant de commander.
Si vous êtes inquiet, pensez à commander auprès d'un revendeur près de chez vous
Concessionnaires internationaux

  • Installation sans soudure

    Super facile à installer et permet des changements de capteur sans soudure avec les connecteurs Obsidian ® Plug, Play & Enjoy .

  • Qualité professionnelle

    Les meilleures mises à niveau absolues du câblage de la guitare, utilisant des pièces personnalisées et des techniques perfectionnées pour garantir que votre harnais sera une mise à niveau pour vous et votre guitare. À chaque fois.

  • Plus de fonctionnalités

    Électronique de guitare qui offrira une plus grande gamme de sons à partir de vos micros, avec plus d'options de commutation et des configurations plus dynamiques adaptées à votre guitare.

  • Son amélioré

    Câblage de guitare qui permet la plage dynamique complète de vos micros et, tout aussi important, aide à trouver un harnais qui vous convient.

Customer Reviews

Based on 22 reviews
91%
(20)
5%
(1)
0%
(0)
0%
(0)
5%
(1)
S
Steve Lopez (Charleston, US)
Install Time: 11 - 20 minutes
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing
Awesome

This makes building a custom guitar a breeze and build quality is excellent

k
k.m.

Worked great easy to install

T
Thomas Marshall (Melbourne, AU)
Install Time: 11 - 20 minutes
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing
HH strat

I found the install would be easier if the connection block faced the other way and not crammed up against the pots, making it hard to know when the cable was in deep enough. Other than that it was a breeze, and the unit works perfectly

J
Joe Matheson (Salmon Arm, CA)
Install Time: 11 - 20 minutes
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing
Fantastic Warranty and Customer Service

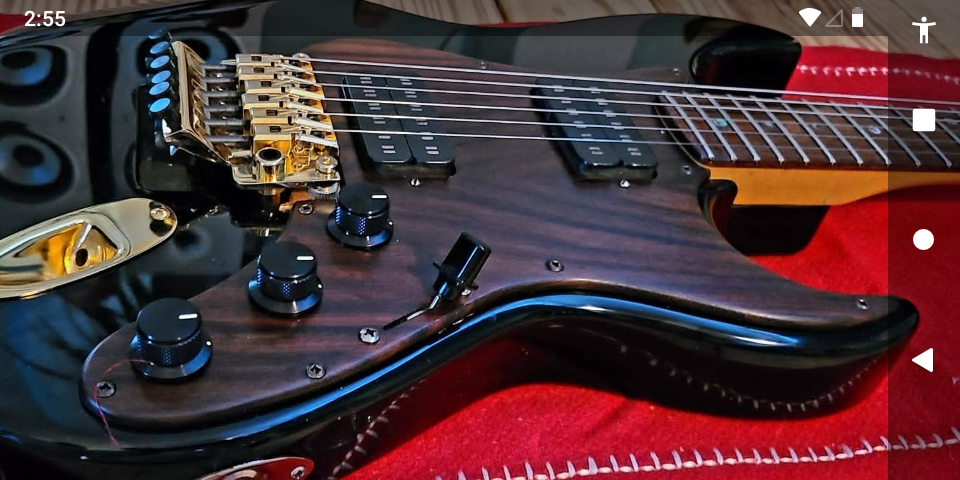

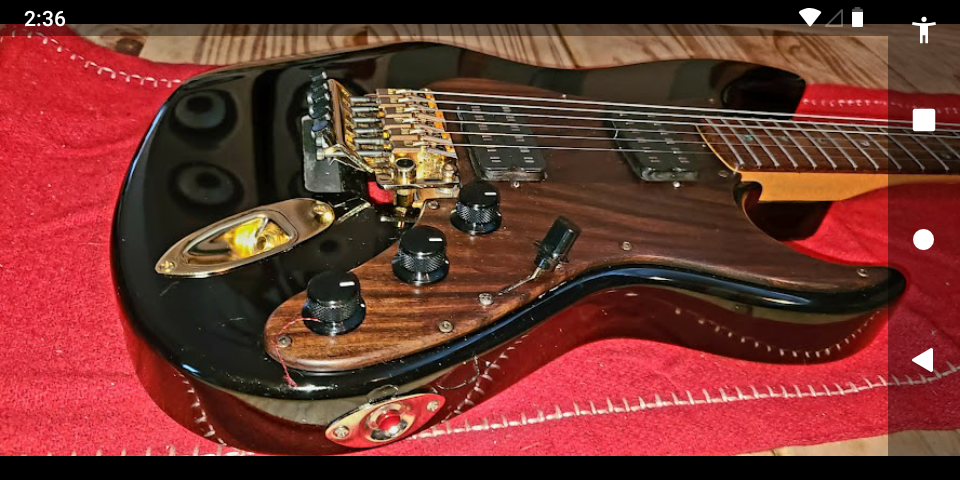

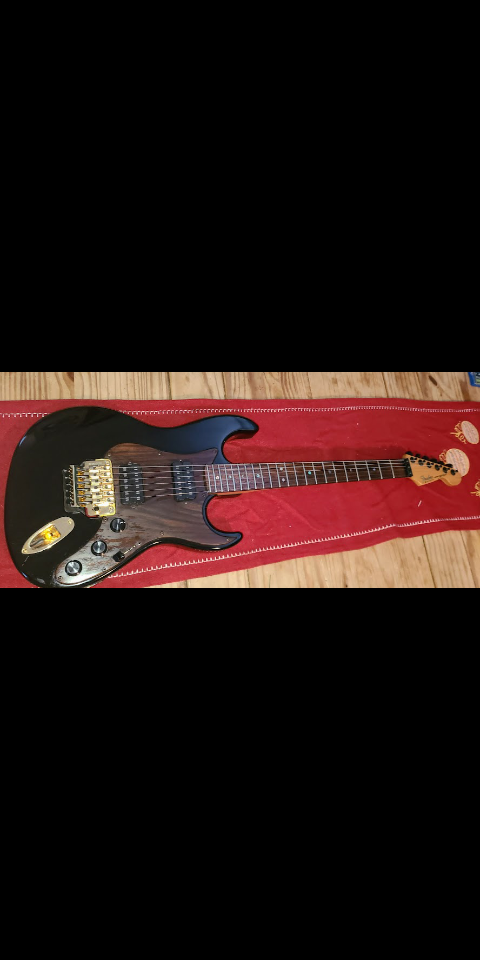

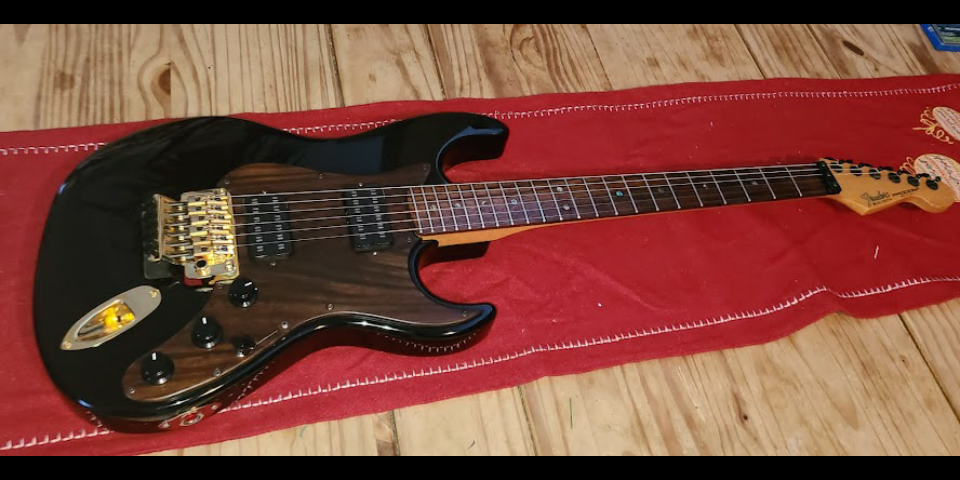

Purchased your HH Strat setup. Installed it on my customized "Fender Prodigy" which now makes it a "Fender Stratigy"I wanted only the best for my project and I heard you guys were it. Buttery smooth controls, simple installation, and a clean control cavity. Had some issues early on and you guys were 100% helpful. Thank you ObsidianWire!!

T
Todd Yohn (Rural Hall, US)
Install Time: 11 - 20 minutes
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing

Great wiring harness
