ObsidianWire®

LP Ultimate JP

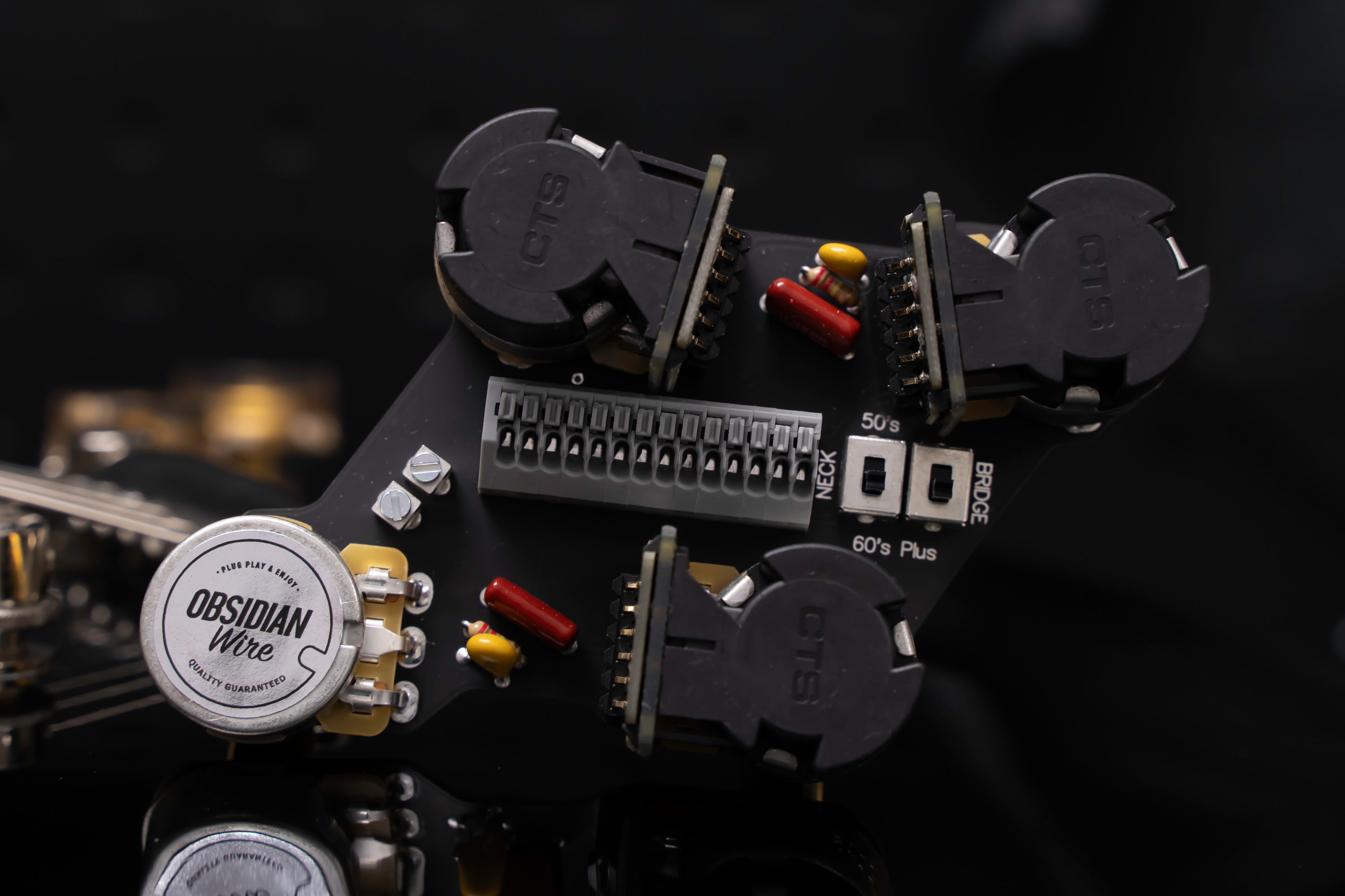

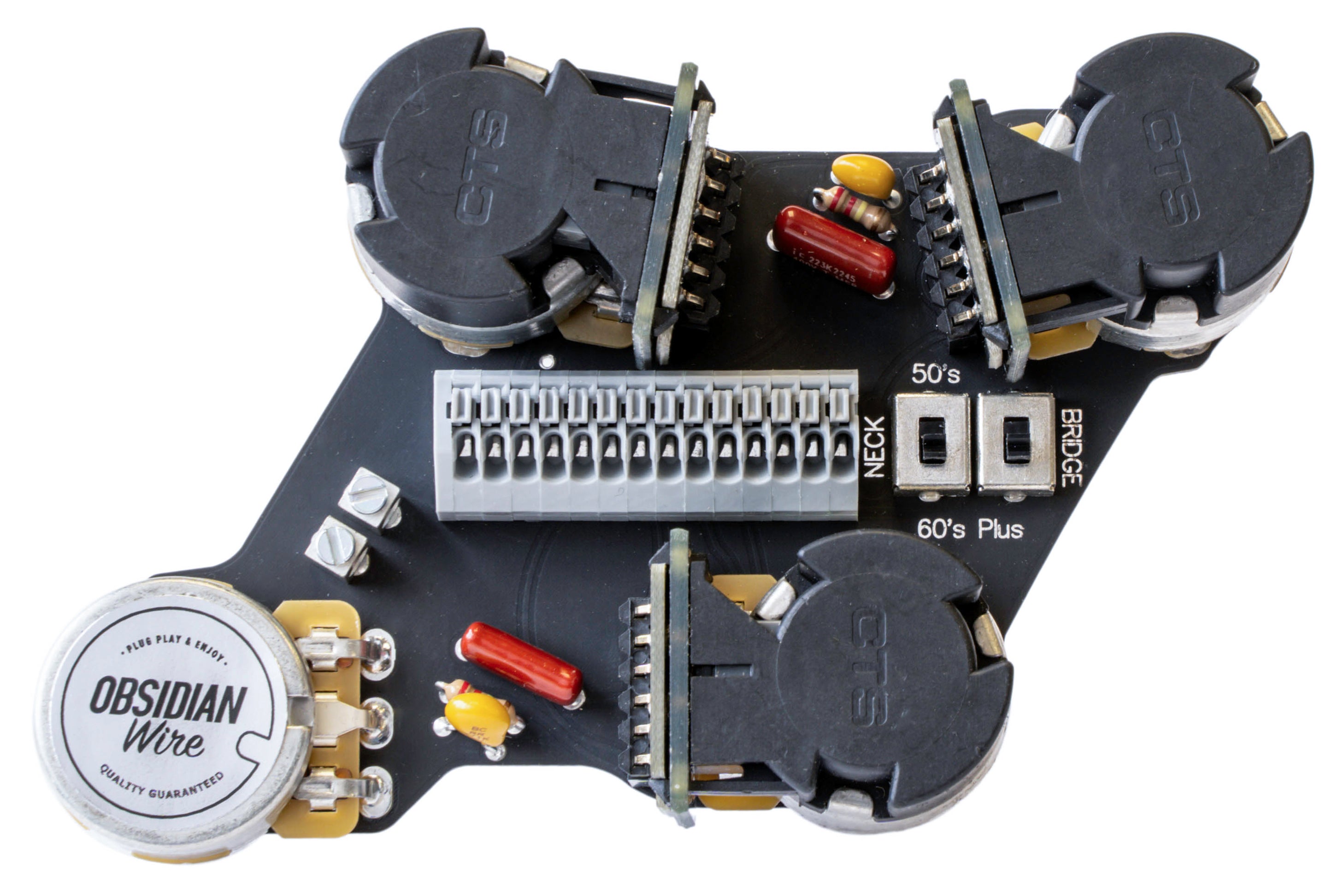

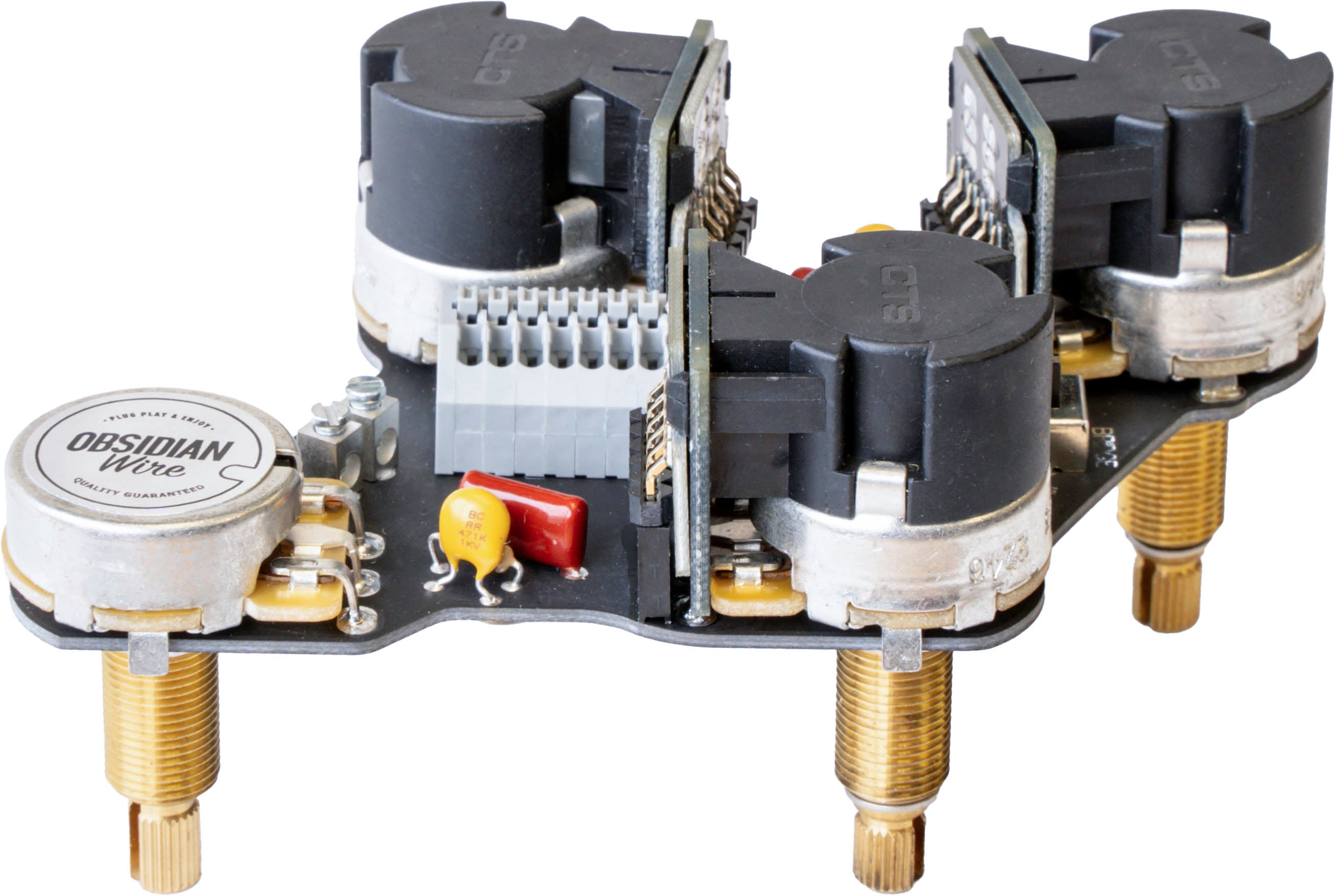

'The Ultimate' Wiring for Les Paul® // 'JP' Mod

Regulärer Preis
US$199.00
Regulärer Preis
Verkaufspreis
US$199.00

Super Easy, Solder-less Install
Features:

  • Selectable 'Vintage 50's' / '60's Plus' Wiring
  • Dual SC 'Coil Split'
  • 'Series' Mode
  • Phase Switching
  • Series // Parallel Switching
  • Fits Gibson & *Epiphone Les Paul

* REQUIRES FOUR CONDUCTOR PICKUPS


FAST SHIPPING

5 YEAR WARRANTY

&
ObsidianWire Les Paul Wiring Harness - Solderless Install (Vintage MKII)
ObsidianWire Les Paul Wiring Harness - Solderless Install (Vintage MKII) Dual Split Coil
&
&
ObsidianWire Pro-Wired Les Paul Switch
& &

'The Ultimate'

  • MKII '50s' // '60s Plus' Switching

    MKII 50S // 60S PLUS WIRING

    Easily select between vintage 50s wiring and ObsidianWire 60s Plus wiring with a dedicated mini switch for each pickup.

    Learn More
  • Dual SC // Coil Splitting

    DUAL SC (COIL SPLIT)

    Turn your humbuckers in to single coils for lower output Strat & Tele like sounds

  • 'Series' Mode

    SERIES // PARALLEL SWITCH

    Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

  • Phase Switching

    PHASE SWITCHING

    Play your neck and bridge pickups out of phase for nasally Les Paul sound made famous by Brian May and Jimmy Page.

  • Solder-less Install

    SOLDER-LESS INSTALL

    All ObsidianWire Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

  • Fits Gibson & Epiphone Les Paul

    MADE TO FIT

    • Gibson® Les Paul®
    • *Epiphone® Les Paul® (Requires new knobs and wider holes)

    *Always check layout guide below and fit info below. NOT compatible with 90s Korean built Les Paul.

    Check Fit Here

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



'The Ultimate' Wiring for Les Paul® // 'JP' Mod

'The Ultimate' wiring for Les Paul® is a full featured and comprehensive wiring upgrade, designed to give you all of the best Les Paul sounds in one setup.

Based on the wiring used by Jimmy Page, and tweaked and adjusted to make it even more versatile.

The extra sounds are activated using three push / pull pots, so no extra mods are required to the body of your guitar.

Features:

  • Selectable 'Vintage 50's' / '60's Plus' Wiring
  • Dual SC 'Coil Split'
  • 'Series' Mode
  • Phase Switching
  • Series // Parallel Switching
  • Solder-less Install
  • Fits Gibson & *Epiphone Les Paul

* REQUIRES FOUR CONDUCTOR PICKUPS

MKII '50S' // '60S PLUS' SWITCHING

'VINTAGE 50'S' MODE

Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.

'60'S PLUS' MODE

Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.

For a full run down on different Les Paul wiring types, check out our full guide - Click Here

DUAL SC // COIL SPLITTING (Neck Volume)

Split both humbuckers into single-coils for lower output, more dynamic tones.

'SERIES' MODE (Neck Tone)

Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

PHASE SWITCHING (Bridge Tone)

Play your neck and bridge pickups out of phase for nasally Les Paul sound made famous by Brian May and Jimmy Page.

Specs

BUILT IN HOUSE WITH

  • Potentiometers: ObsidianWire® Custom CTS® 500k Pots (+/-10%) Split Shaft / 24 Spline
  • Capacitors: (0.022uf) (+/-5%)
  • Switch: ObsidianWire® Pro-Wired Toggle Switch
  • Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

Compatibility

MADE TO FIT

  • Gibson® Les Paul®
  • *MOST Epiphone® Les Paul®

*Always check layout guide below and fit info below.

NOT compatible with 90s Korean built Les Paul.

  • Always Check: Layout Guide
  • Hole Size: 3/8" (9.5mm) mounting holes
  • Knobs: Use Only US spec 24 spline knobs (Do NOT use metric / 'Import' style knobs
  • Pickups: Requires Four Conductor Pickups

DOES NOT FIT

  • Does NOT fit: Lefty, three pickup Les Paul®, or any other guitar or Les Paul® Copy.

Install

For install help and other resources please go to our Info Hub.
