Obsidian®

ST Custom 7 G2

Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

Regular price
US$109.00
Regular price
Sale price
US$109.00

Super Easy, Solder-less Install
Key Features:

  • New 'Gen2' Model
  • Gilmour Mod  / '7-Way' Switching
  • Improved Tone Control Layout
  • Switchable Volume Control Voicings
  • Fits Fender® Strat®
  • Fits Squier® Strat® with Adjustments

    FAST SHIPPING

    5 YEAR WARRANTY

    ObsidianWire solderless install logo

    Super Easy, Solder-less Install
    All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



    Custom 7 WAY Wiring for Strat®// Gilmour Mod

    The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

    7-WAY STRAT SWITCH // GILMOUR MOD

    The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

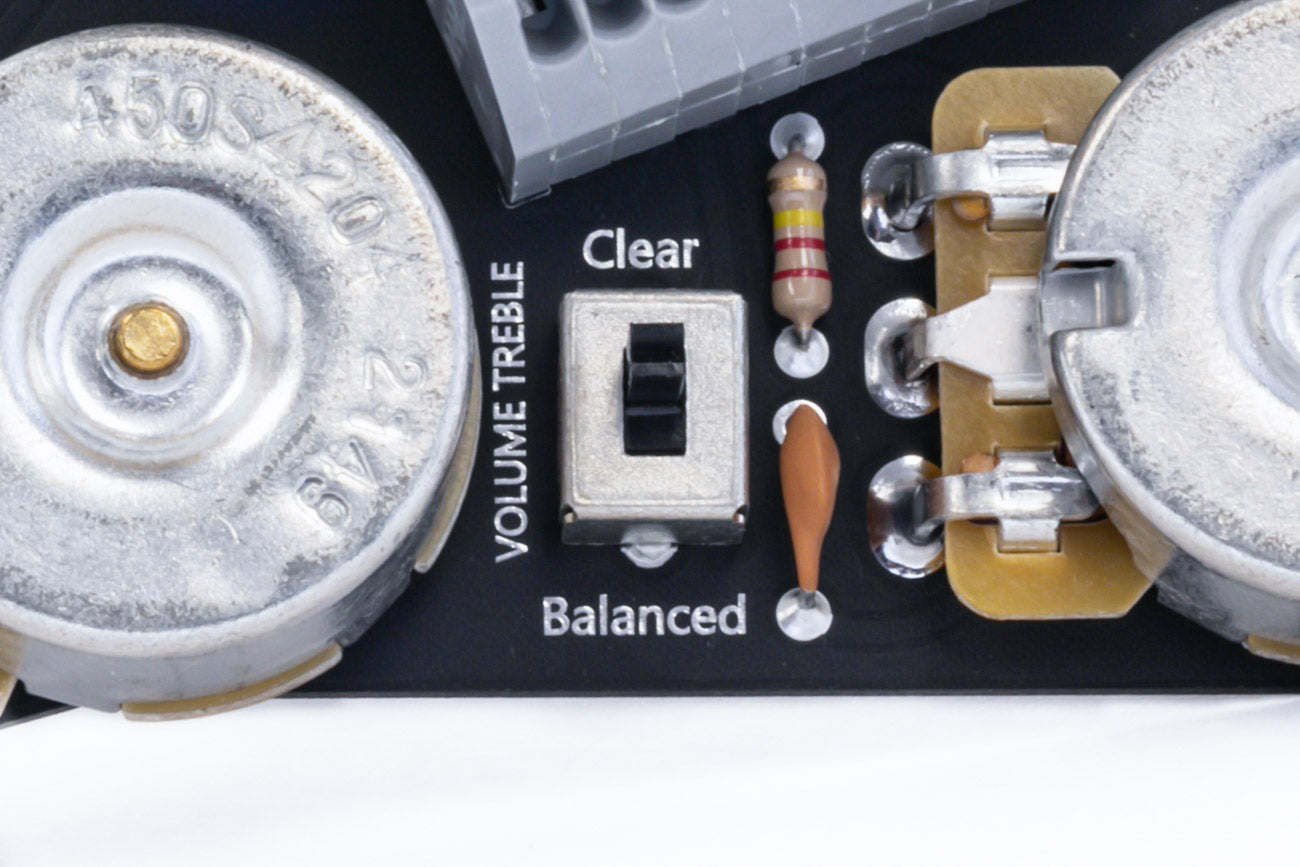

    'VOICE' SWITCHING

    Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.

    'CLEAR' MODE - Crystal clear tone at any volume level
    'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch

    OBSIDIAN® LAYOUT

    Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.

    Controls:

    Tone Control 1: Middle & Neck Pickup (Works in positions 2 - 5)
    Tone Control 2: Bridge Pickup (Works in positions 1 - 2)

    GILMOUR SWITCH FUNCTION

    '7 WAY' GILMOUR SWITCH ON (UP)

    '7 WAY' GILMOUR SWITCH OFF (DOWN)

    Bridge + Neck Bridge
    Bridge & Middle + Neck Bridge & Middle
    Middle + Neck Middle
    Neck & Middle  Neck & Middle
    Neck Neck

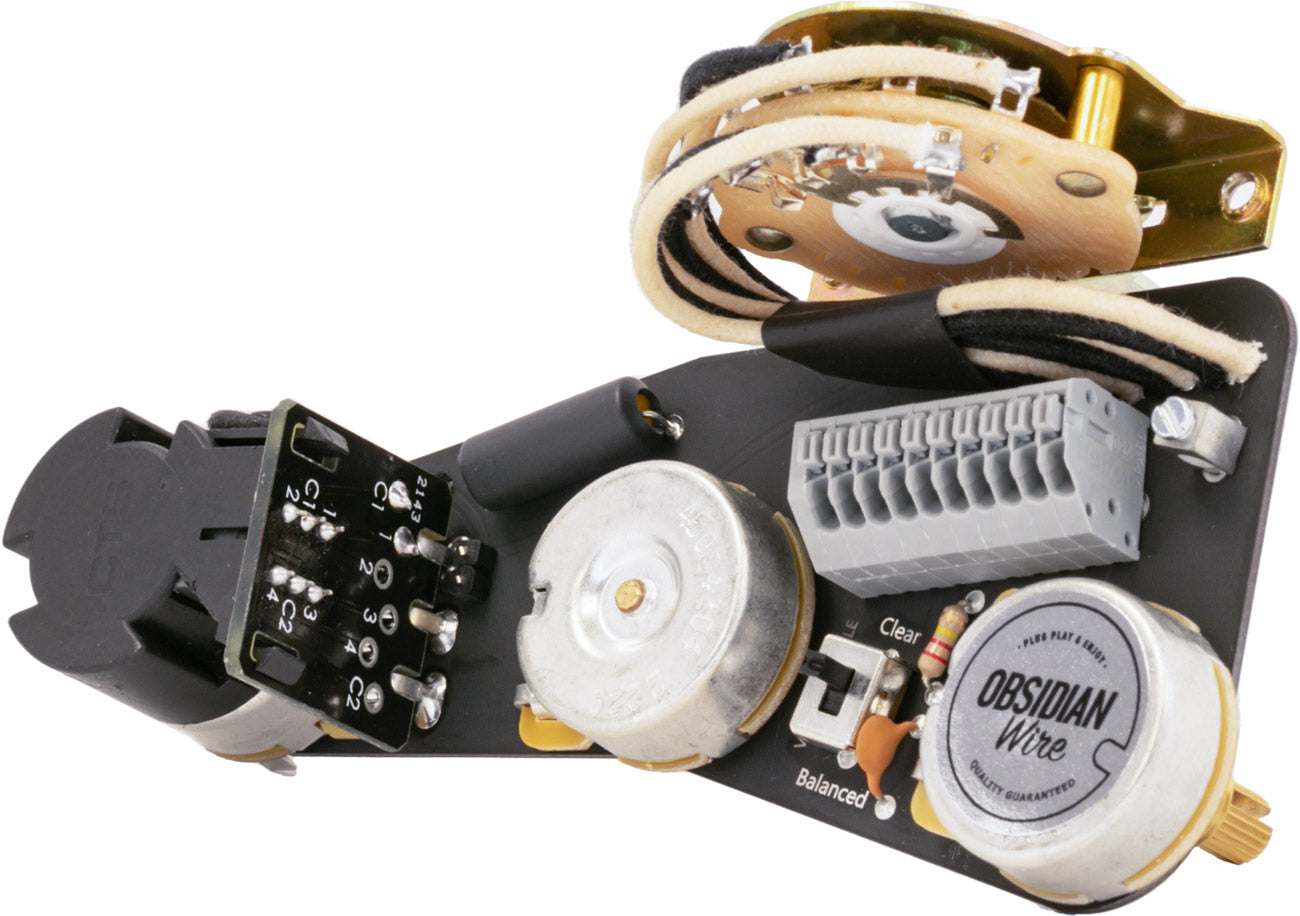

    The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
    Custom &
    The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice

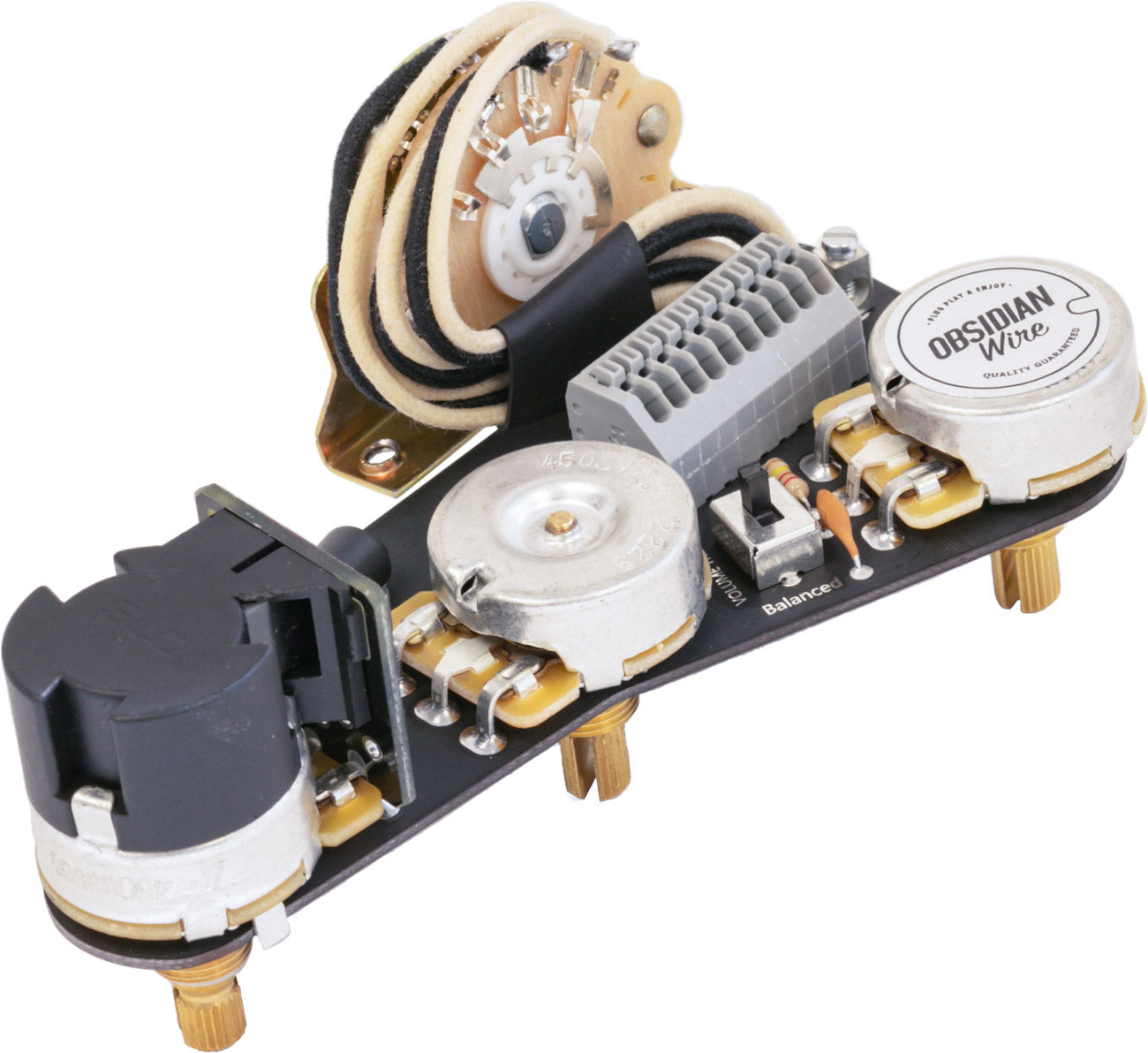

    The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
    Custom &

    Gilmour Mod // 7-Way Wiring - for SSS Stratocaster®

    The Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

    • New 'Gen2' Model
    • Gilmour Mod  / '7-Way' Switching
    • Improved Tone Control Layout
    • Switchable Volume Control Voicings
    • Fits Fender® Strat®
    • Fits Squier® Strat® with Adjustments

    Details

    Description

    ObsidianWire solderless install logo

    Super Easy, Solder-less Install
    All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



    Custom 7 WAY Wiring for Strat®// Gilmour Mod

    The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

    7-WAY STRAT SWITCH // GILMOUR MOD

    The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

    'VOICE' SWITCHING

    Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.

    'CLEAR' MODE - Crystal clear tone at any volume level
    'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch

    OBSIDIAN® LAYOUT

    Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.

    Controls:

    Tone Control 1: Middle & Neck Pickup (Works in positions 2 - 5)
    Tone Control 2: Bridge Pickup (Works in positions 1 - 2)

    GILMOUR SWITCH FUNCTION

    '7 WAY' GILMOUR SWITCH ON (UP)

    '7 WAY' GILMOUR SWITCH OFF (DOWN)

    Bridge + Neck Bridge
    Bridge & Middle + Neck Bridge & Middle
    Middle + Neck Middle
    Neck & Middle  Neck & Middle
    Neck Neck


    Specs

    BUILT IN HOUSE WITH

    Potentiometers: Obsidian®Custom CTS 250k Pots(+/-10%) Split Shaft / 24 Spline

    Capacitors: (150 Series Polyester Film 0.022uf)(+/-5%

    Switch: Oak® 5 Way Selector Switch

    Jack: Pro-Wired Switchcraft J11 Mono

    Compatibility

    MADE TO FIT

    Fender® Stratocaster®- Direct Fit // Right Hand Guitar Only

    Squier® Stratocaster®- Widen Control holes to 10mm & replace knob

    Always Check: Requires Minimum Cavity Depth Around Push Pull Pot 29.2mm / 1.15

    Knobs:Requires US spec 24 spline knob

    Pickups: Built for three single coil pickups

    DOES NOT FIT

    Left Handed Guitars // Any guitar not described above
