ObsidianWire®

ST Custom HH6 G2

Custom HH for Strat® '6 -Way' Gen2 // NEW

Regular price
US$119.00
Regular price
Sale price
US$119.00

Super Easy, Solder-less Install
Key Features:

  • New 'Gen2' Model
  • Custom controls for 'HH' Strat®
  • '6-Way' switching system
  • Tunable coil split for fuller split coil sounds
  • Fits Fender® Strat®
  • Fits Squier® Strat® with adjustments


    FAST SHIPPING

    5 YEAR WARRANTY

    ObsidianWire solderless install logo

    Super Easy, Solder-less Install
    All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.




    Custom HH '6 Way' Gen2 - HH Strat Wiring Harness

    We have built the Obsidian 6 Way HH wiring harness for Stratocaster with TUNEABLE DUAL SC (SPLIT COIL) so you can enjoy the full output and clarity of your humbuckers, AND switch them in to 'Split Coil' mode for lower output, single coil goodness that is fine tunable to your liking.

    NEW // GEN 2 UPDATES

    To improve on our already super popular Custom HH harness we have

    • Added a tuneability function to the coil split - so you can craft your split coil sounds to be fuller and better rounded, or set them to 'quiet' for a more traditional full split.
    • Easier Install - We have moved the push/pull coil split pot to the second tone control position to get it out of the way of the solderless connector, making for an easier install.

    TUNABLE ESC (COIL SPLIT)

    Turn your humbuckers in to single coils, and back again. To add true versatility to your guitar we build in TUNABLE SC, to split your humbucker to a single-coil for lower output, more dynamic tones.

    We incorporate a Coil Split 'Voice' control, which allows you to fine tune the amount of signal that is sent to ground.

    • 'QUIET' = FULL SPLIT (TRADITIONAL COIL SPLIT)
    • 'LOUD' = SEMI SPLIT (LAMBERTONES SPLIT FOR FULLER SPLIT COIL)

    TUNABLE SC is built in to your volume controls using push/pull pots, so no extra mods are required to your guitar.

    - Requires split coil compatible humbuckers

    CRYSTAL CLEAR TONE

    Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

    SWITCH LAYOUT

    Push Pull DOWN

    1: Bridge Humbucker
    2: Bridge & Neck - Humbucker
    3: Neck  - Humbucker

    Push Pull UP

    1: Bridge - Single Coil
    2: Bridge & Neck - Single Coil
    3: Neck - Single Coil

    CONTROL LAYOUT

    Switch: 3 - Way
    Control 1: Master Volume
    Control 2: Tone Control 1 (Neck)
    Control 3: Tone Control 2 (Bridge)

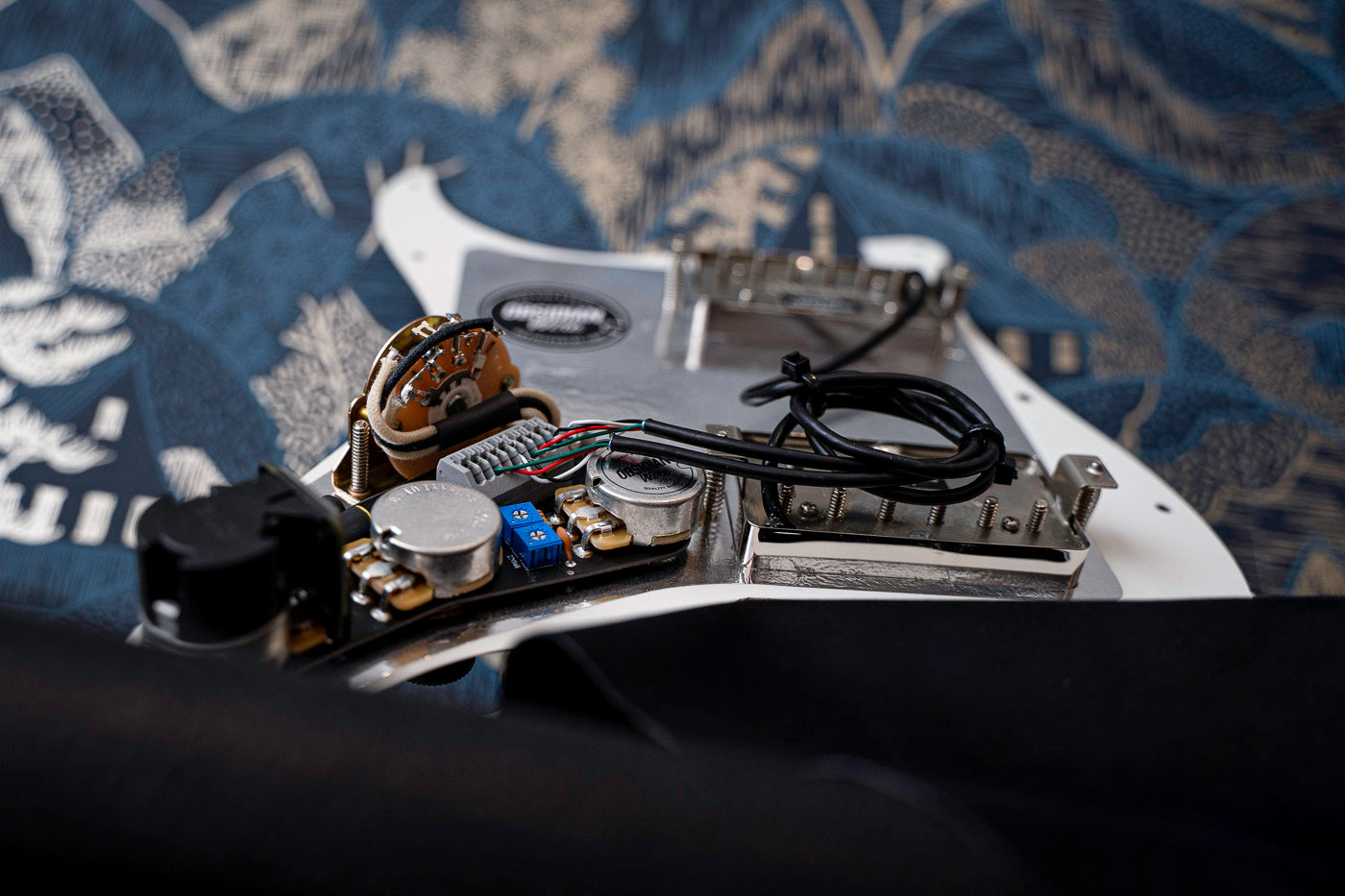

    ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching
    Side view of the ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching
    Top down view of the ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching
    Top down view of the ObsidianWire HH wiring harness for Fender Stratocaster with tunable split coil & 6 way switching

    Humbucker Optimized Wiring for - HH Stratocaster®

    The Custom HH for Strat® '6 -Way' Gen2 // NEW

    • New 'Gen2' Model
    • Custom controls for 'HH' Strat®
    • '6-Way' switching system
    • Tunable coil split for fuller split coil sounds
    • Fits Fender® Strat®
    • Fits Squier® Strat® with adjustments

    Details

    Description

    ObsidianWire solderless install logo

    Super Easy, Solder-less Install
    All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.




    Custom HH '6 Way' Gen2 - HH Strat Wiring Harness

    We have built the Obsidian 6 Way HH wiring harness for Stratocaster with TUNEABLE DUAL SC (SPLIT COIL) so you can enjoy the full output and clarity of your humbuckers, AND switch them in to 'Split Coil' mode for lower output, single coil goodness that is fine tunable to your liking.

    NEW // GEN 2 UPDATES

    To improve on our already super popular Custom HH harness we have

    • Added a tuneability function to the coil split - so you can craft your split coil sounds to be fuller and better rounded, or set them to 'quiet' for a more traditional full split.
    • Easier Install - We have moved the push/pull coil split pot to the second tone control position to get it out of the way of the solderless connector, making for an easier install.

    TUNABLE ESC (COIL SPLIT)

    Turn your humbuckers in to single coils, and back again. To add true versatility to your guitar we build in TUNABLE SC, to split your humbucker to a single-coil for lower output, more dynamic tones.

    We incorporate a Coil Split 'Voice' control, which allows you to fine tune the amount of signal that is sent to ground.

    • 'QUIET' = FULL SPLIT (TRADITIONAL COIL SPLIT)
    • 'LOUD' = SEMI SPLIT (LAMBERTONES SPLIT FOR FULLER SPLIT COIL)

    TUNABLE SC is built in to your volume controls using push/pull pots, so no extra mods are required to your guitar.

    - Requires split coil compatible humbuckers

    CRYSTAL CLEAR TONE

    Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

    SWITCH LAYOUT

    Push Pull DOWN

    1: Bridge Humbucker
    2: Bridge & Neck - Humbucker
    3: Neck  - Humbucker

    Push Pull UP

    1: Bridge - Single Coil
    2: Bridge & Neck - Single Coil
    3: Neck - Single Coil

    CONTROL LAYOUT

    Switch: 3 - Way
    Control 1: Master Volume
    Control 2: Tone Control 1 (Neck)
    Control 3: Tone Control 2 (Bridge)


    Specs

    BUILT IN HOUSE WITH

    • Potentiometers: Obsidian® Custom CTS® Pots 500K (+/-10%) Split Shaft / 24 Spline
    • Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)
    • Switch: Genuine Oak® 3 Way Switch

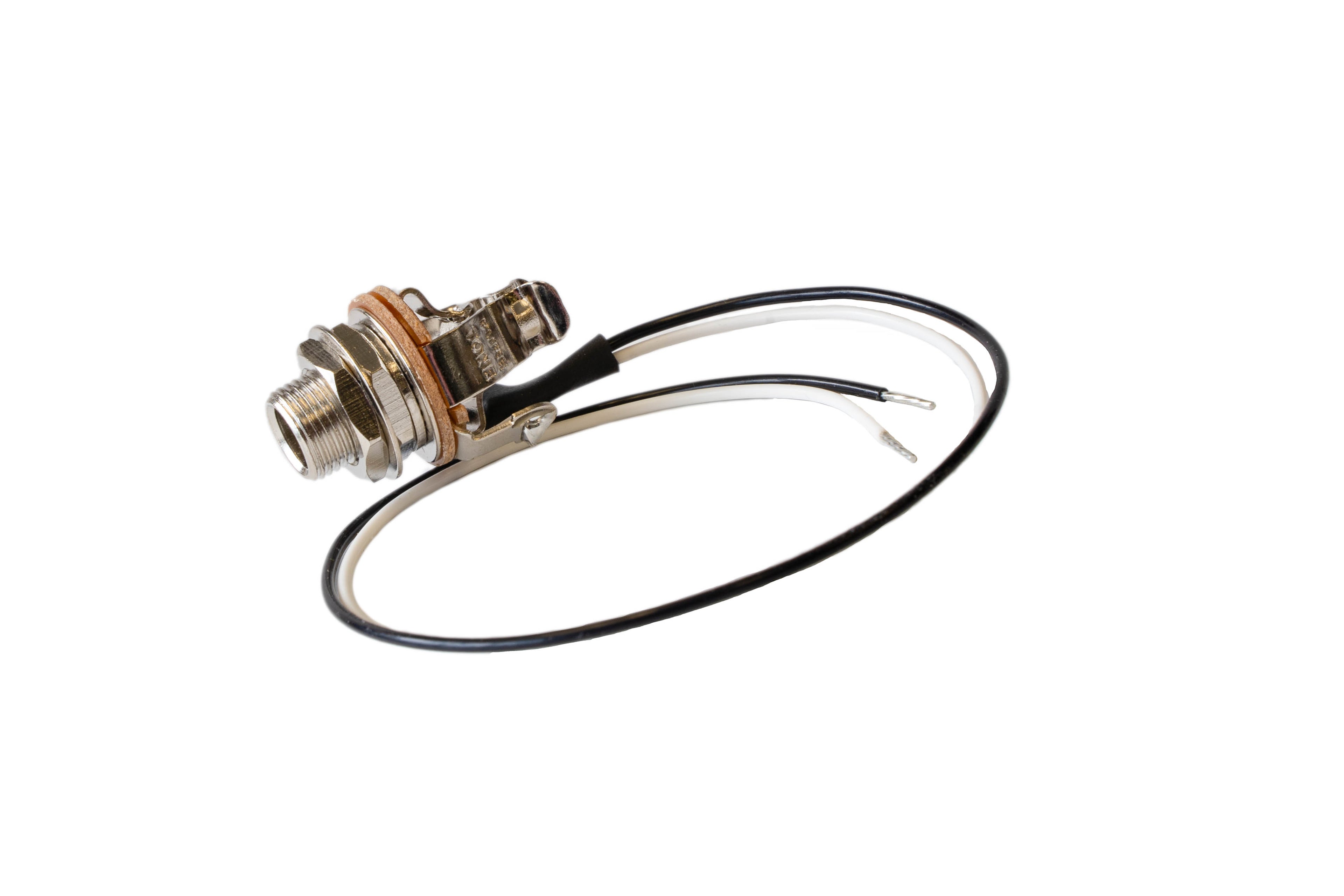

    • Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

    Compatibility

    BUILT TO FIT

    • Fits: Fender® HH Stratocaster® - Direct Fit // Right Hand Guitar Only
    • Fits: Squier® HH Stratocaster® - Widen Control holes to 10mm & replace knobs
    • Always Check: Requires Minimum Cavity Depth 29.2mm / 1.15"
    • Knobs: Requires US spec 24 spline knobs
    • Pickups: Built for two humbucker or P90 loaded Strat® (HH)
    • Coil splitting: Requires compatible four conductor humbuckers

    DOES NOT FIT

    • Does NOT fit: Left Handed Guitars // Any guitar not described above
