M2S-S-001

M2-S | Two Pickup Wiring Harness // S-Type

Regular price: US$119.00
Regular price
Sale price: US$119.00

Shipping calculated at checkout.

Flex-Series™ : Design your own premium solder-less wiring harness

Made to fit two pickup guitars ,with Stratocaster® style control layouts, and their modern variants.

NOT likely to fit other shape cavities

Features:

Custom Built for Two Pickup / S-Style Guitars
ObsidianWire IGNEOS Firm Grip Pots
Crystal Clear Tone (Treble Bleed)
Smooth Tone Control
Layout Flexibility

Short Shaft Pots - Pickguard / Control Plate Mount ONLY
Long Shaft Pots - Rear Mount Only

Important: Find Compatibility Info Below

Build Your Harness

Volume Switchable 250 / 500k Switchable 250 / 500k - Dual Coil Split Upgrade

Tone Control Master Tone Control No Tone Control - Volume Only

Shaft Length Short - Pickguard Mount Only Long - Rear Mount Only

FAST SHIPPING

5 YEAR WARRANTY

Details

Description

Super Easy, Solder-less Install
All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

Design Your Own Harness
Select your volume control, and easily add compatible tone controls , mute switches and kill switches without soldering.

Flex-Series™ | The new generation of Pro-Grade Guitar Wiring

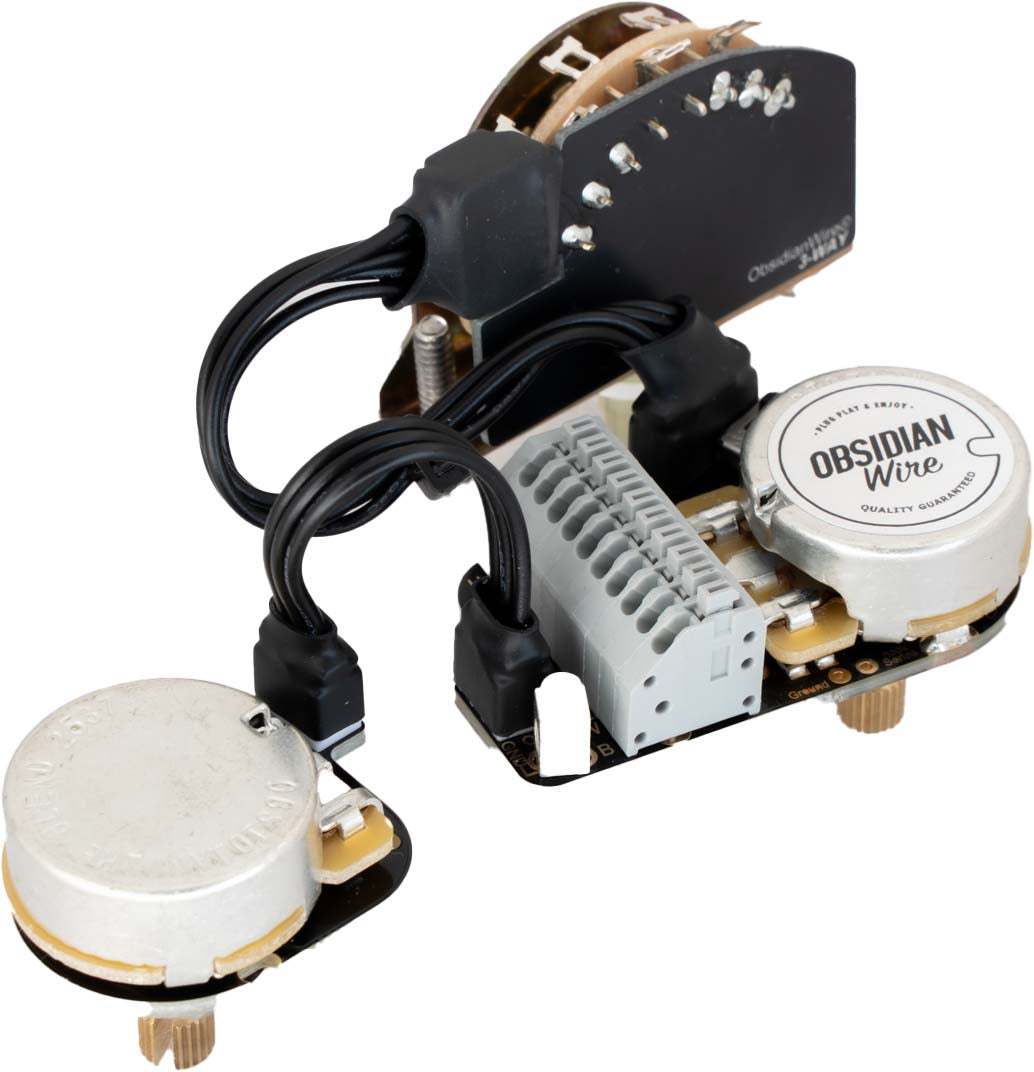

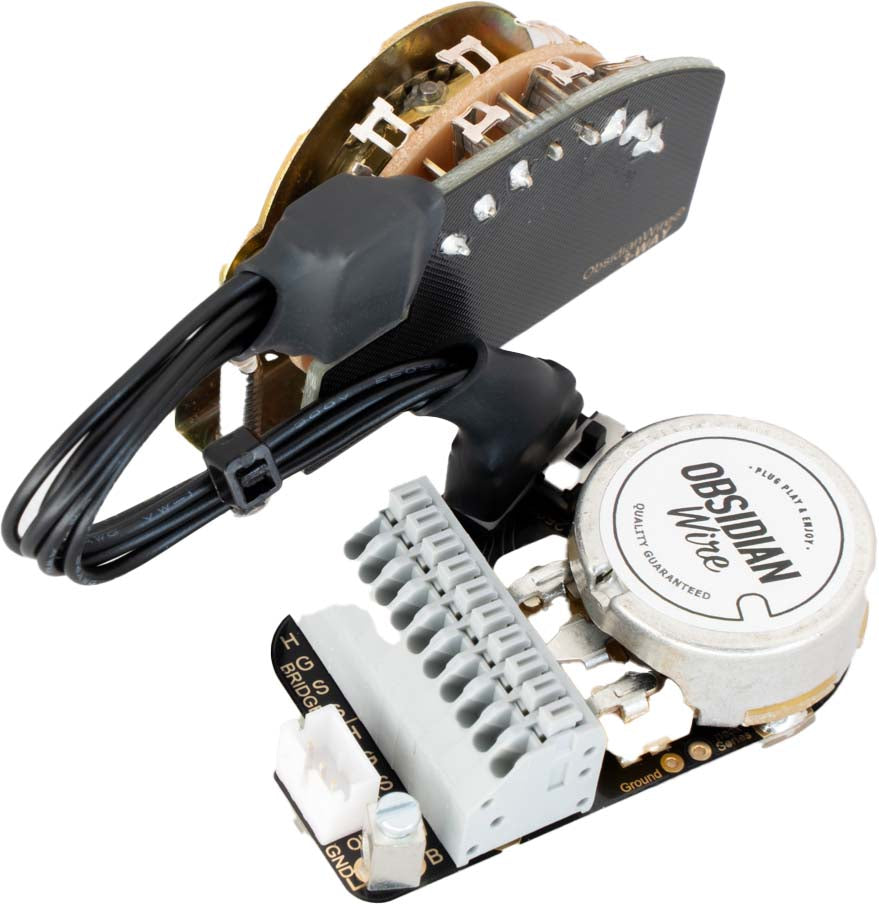

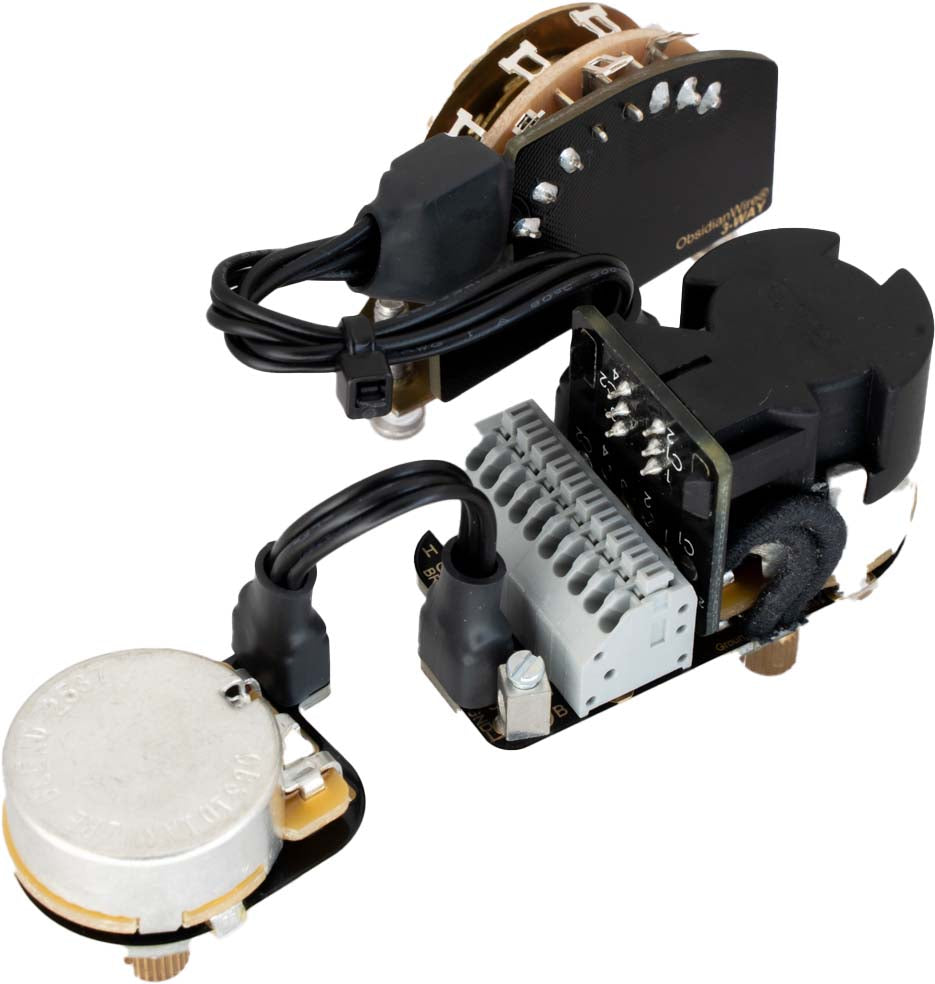

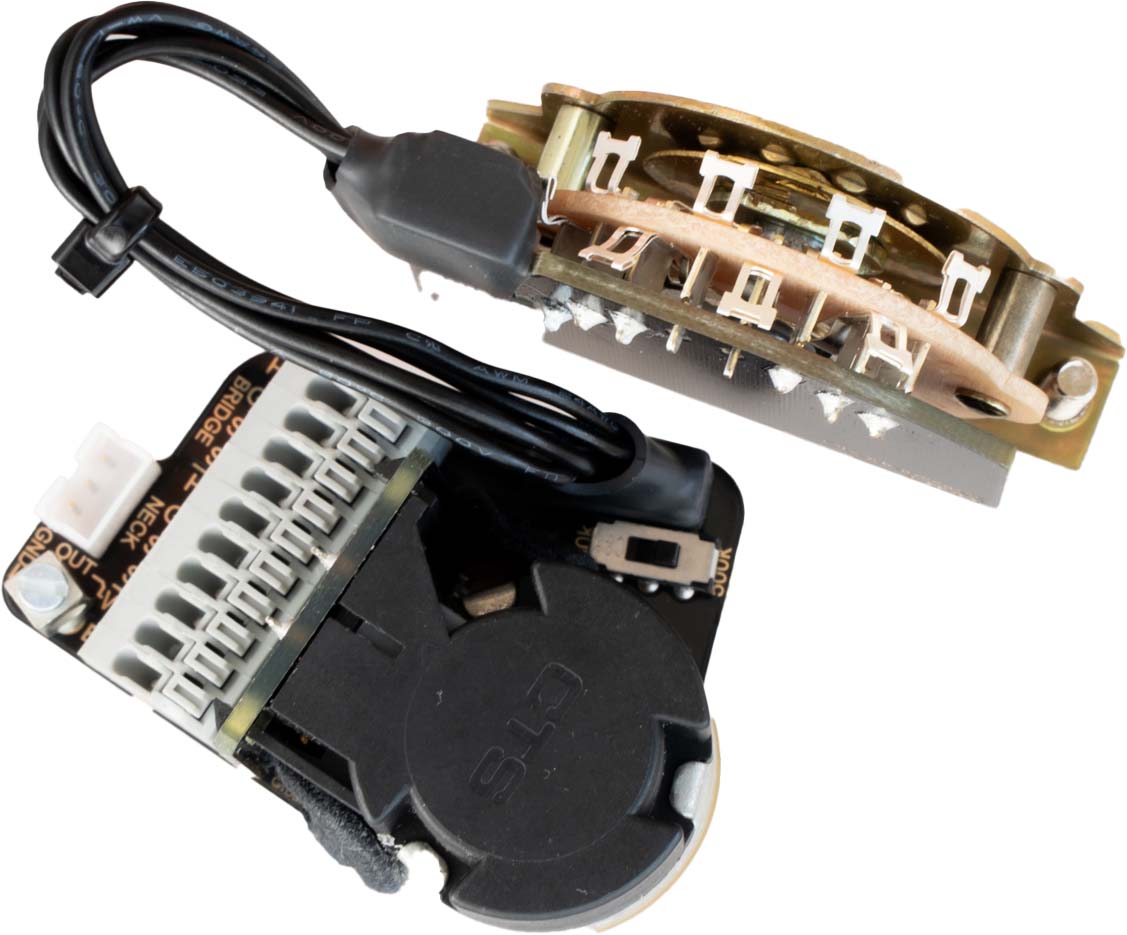

Flex-Series™ M2-S | Two Pickup Guitar Wiring Harness

Pro-Built for S-Shaped, two pickup guitars - Not likely to fit other shape cavities

Pickups: Two Pickup Guitars - Humbuckers / Single Coils / P90s
Layout: S-Style (Flexible Wiring)
Switch: 3-Way Blade
Volume Control: 250 / 500k Switchable
Tone control - Optional
Upgrade Options: Dual Coil Split

Features

ObsidianWire IGNEOS™ Firm Grip Pots

ObsidianWire® IGNEOS™ guitar pots are the new standard for pro-grade guitar wiring.

Durable Design - for years of trouble free use
Firm Grip Turning - For a solid feel and secure settings
Fine Tolerance - Guaranteed to spec +/- 10%

CRYSTAL CLEAR TONE (Treble Bleed)

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SMART VOLUME CONTROL (Switchable 250k / 500k)

Easily select between 250k & 500k to optimize the treble balance for your setup

250k = Warmer / balanced treble (great for single coils)
500k = Brighter / retains treble (great for humbuckers & P90s)

MASTER TONE CONTROL (Optional)

Add a custom designed master tone control using our ObsidianWire designed, CTS built IGNEOS™ pots, for a smooth and useable tone control taper.

Upgrade Options

DUAL TUNED SC (COIL SPLIT)

Turn your humbucker(s) in to a single coil, and back again. To add true versatility to your guitar we build in DUAL TUNED SC, to split your humbucker(s) to a single-coil for lower output, more dynamic tones.

To keep your single coils sound full and vibrant, we use Tuned 'partial split' technology, for higher output sound with fuller mids, than is possible with a full split.

Requires split coil compatible humbuckers

Compatibility

Read carefully.

Made to fit two pickup guitars ,with Stratocaster® style control layouts, and their modern variants.

NOT likely to fit other shape cavities

Install

Short Shaft: Pickguard / Control Plate Mount Only
Long Shaft: Rear / Cavity Mount Only
- Standard Long Shaft: Min Body Thickness 33mm
- Push / Pull Long Shaft: Carved Top Bodies Only
Hole Size: 9.54mm
Tone / Volume Hole Spacing: Minimum 57mm (center to center)
Knobs:
- Split Shaft 24 Spline Knobs 'US Spec' OR//
- Solid 1/4" Knobs 'US Spec' with included shaft adapter

DO NOT USE METRIC / 18 SPLINE KNOBS

Pickups

Switchable Volume Control: 250k / 500k

Single Coils - Use 250k
Humbuckers -Use 500k
P90s - Use 500k

Does NOT suit Active / Battery powered pickups

Compatible with all M2-S Flex-Series™ Parts

Tone Controls
Switches
Accessories
Pro-Wired Jacks

Specs

More Info

Install

For install help and other resources please go to our Info Hub.
