ObsidianWire®

LP Vintage MKII

MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)

US$119.00
US$119.00
Shipping calculated at checkout.

Super Easy, Solder-less Install
Key Features:

  • Selectable 'Vintage 50's' / '60's Plus' Wiring
  • Smoother Volume & Tone Control
  • Dual 'Split Coil' Upgrade Option
  • Includes Pro-Wired™ Switch & Jack
  • Fits Gibson® LP®
  • Fits Most Epiphone® LP® with adjustments

More information View images
Style

    FAST SHIPPING

    5 YEAR WARRANTY

    ObsidianWire solderless install logo

    Super Easy, Solder-less Install
    All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



    "New for 2023

    Add the 'Dual 'Split Coil' Upgrade Option' - add a push/pull coil tap switch to each volume control. *Requires Compatible Split Coil (Four Conductor) Pickups"

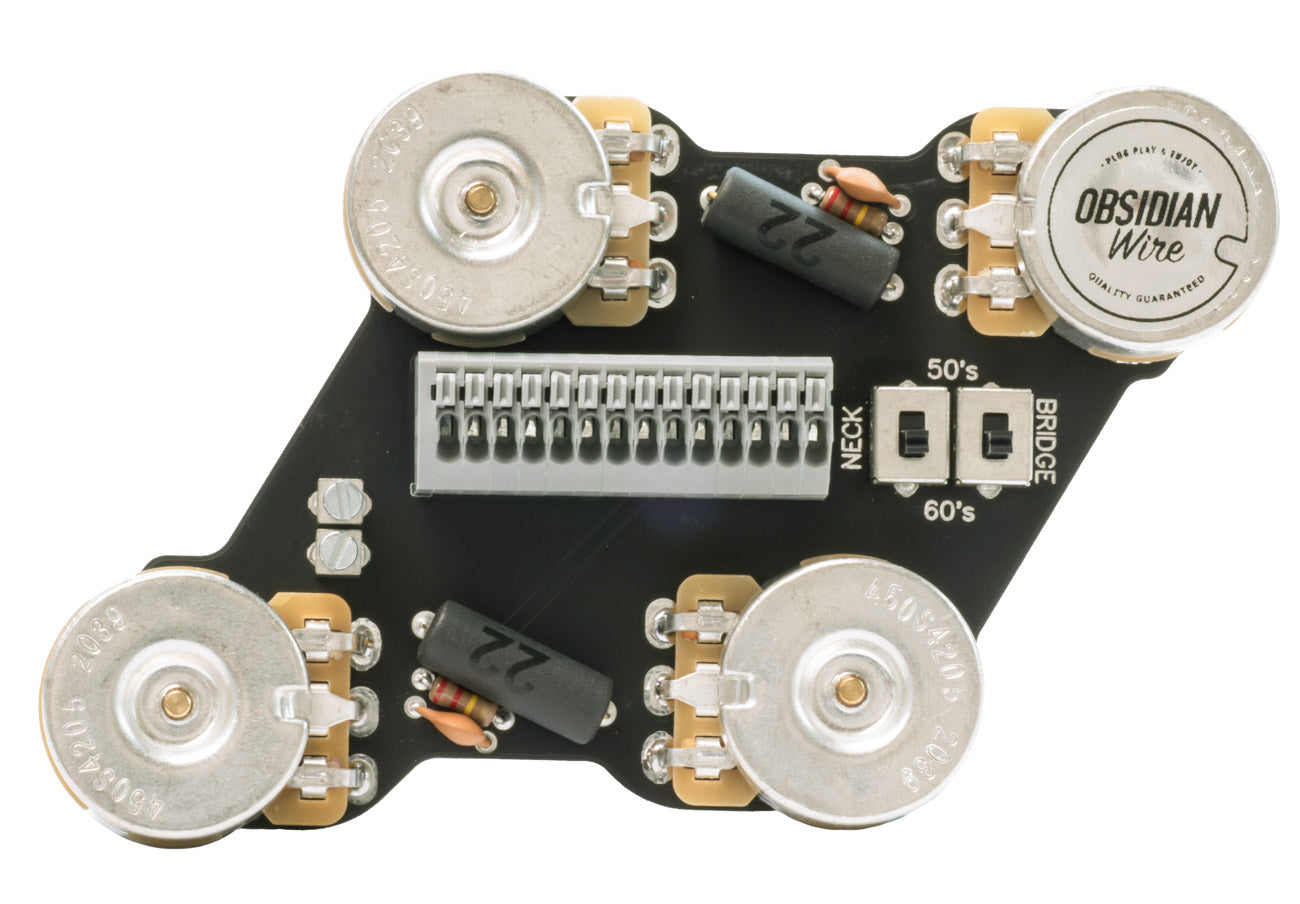

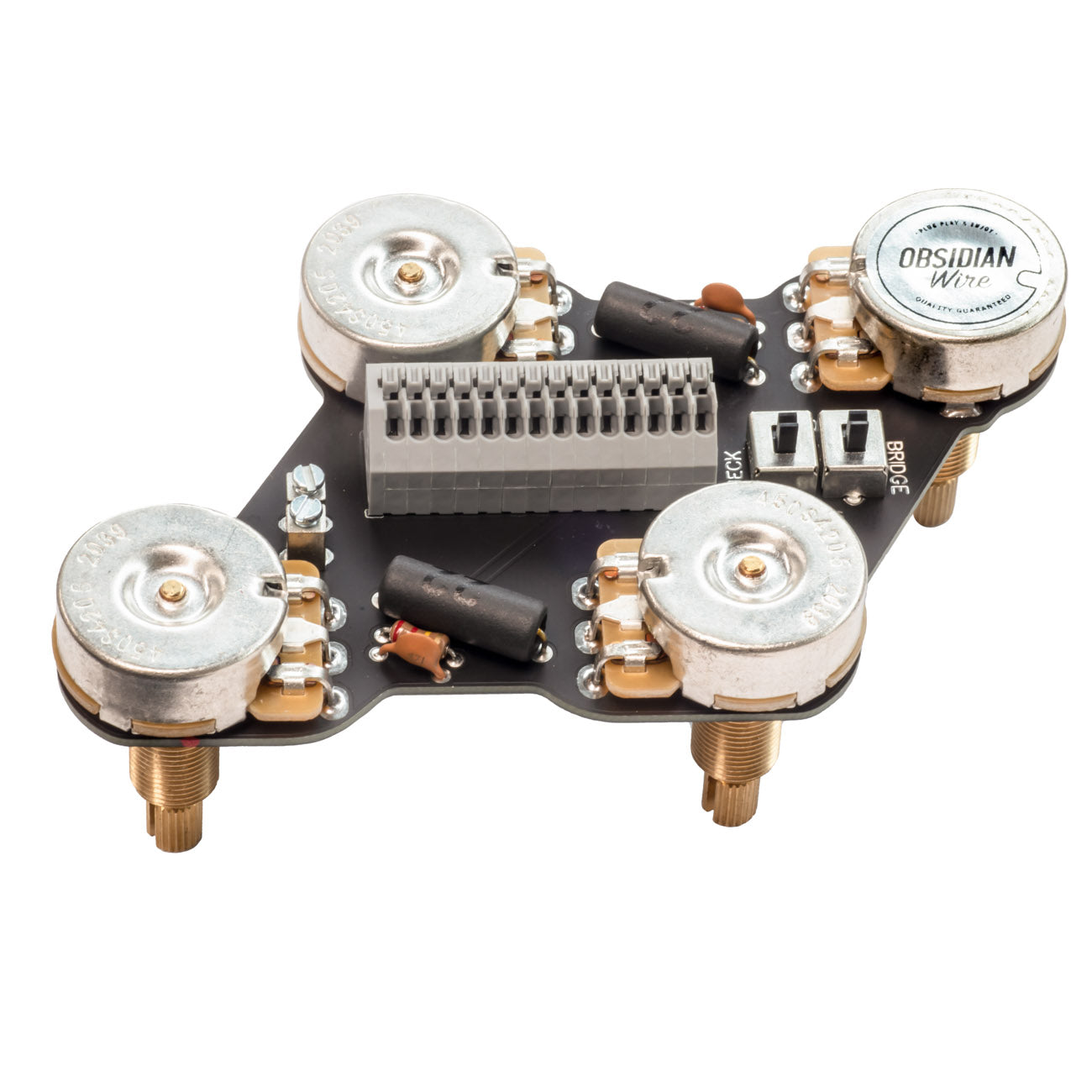

    The ObsidianWire™ Les Paul® Wiring Harness

    The Obsidian® Vintage MKII for Les Paul® is a comprehensive upgrade over stock wiring, that also combines 'Vintage 50's' and '60's Plus' wiring in one product. You can choose between the vintage roll back of the traditional 'Vintage 50's' harness, and superior clarity of the more modern '60's Plus' wiring with the flick of the switch.

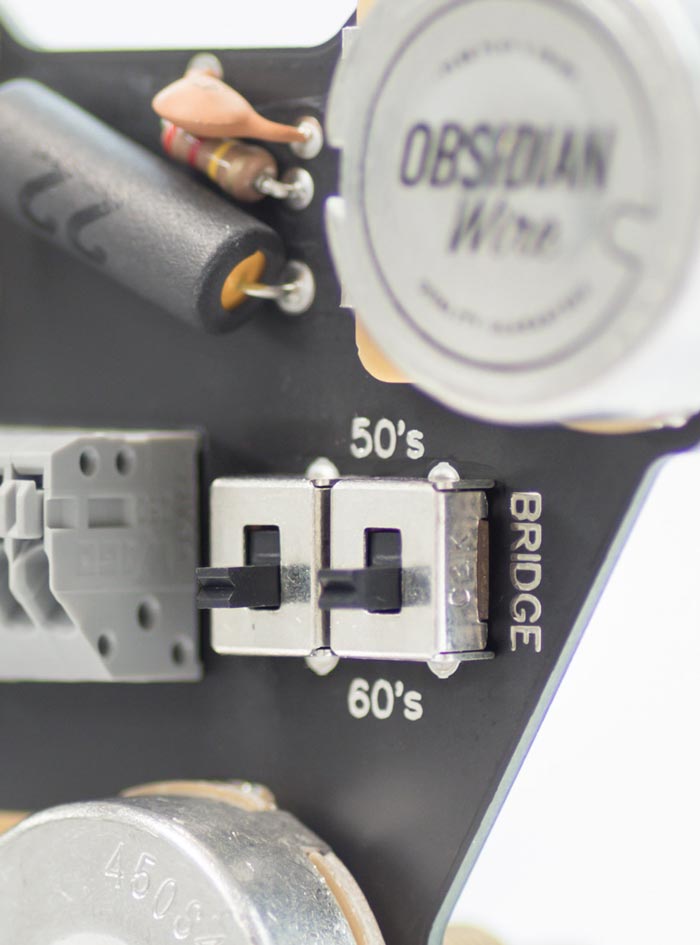

    You get a switch for each pickup, so if you want to run a 'Vintage 50's' setup on the neck pickup, and an Obsidian® '60's Plus' setup for the bridge pickup, YOU CAN.

    We also give you the option to upgrade to 'DUAL SC (COIL SPLIT)' for even more versatility

    'VINTAGE 50'S' MODE

    Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.

    The 'Vintage 50's' wiring mod is a super popular Les Paul wiring upgrade that reverts your stock LP wiring back to the glory days, and the beginning of the Vintage Les Paul. This is our most popular and personal favorite Les Paul wiring.

    '60'S PLUS' MODE

    Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.

    The Obsidian® '60's Plus' wiring is made for clarity and cut through with an improved circuit that will help you retain treble at all volume levels.

    For a full run down on different Les Paul wiring types, check out our full guide - Click Here

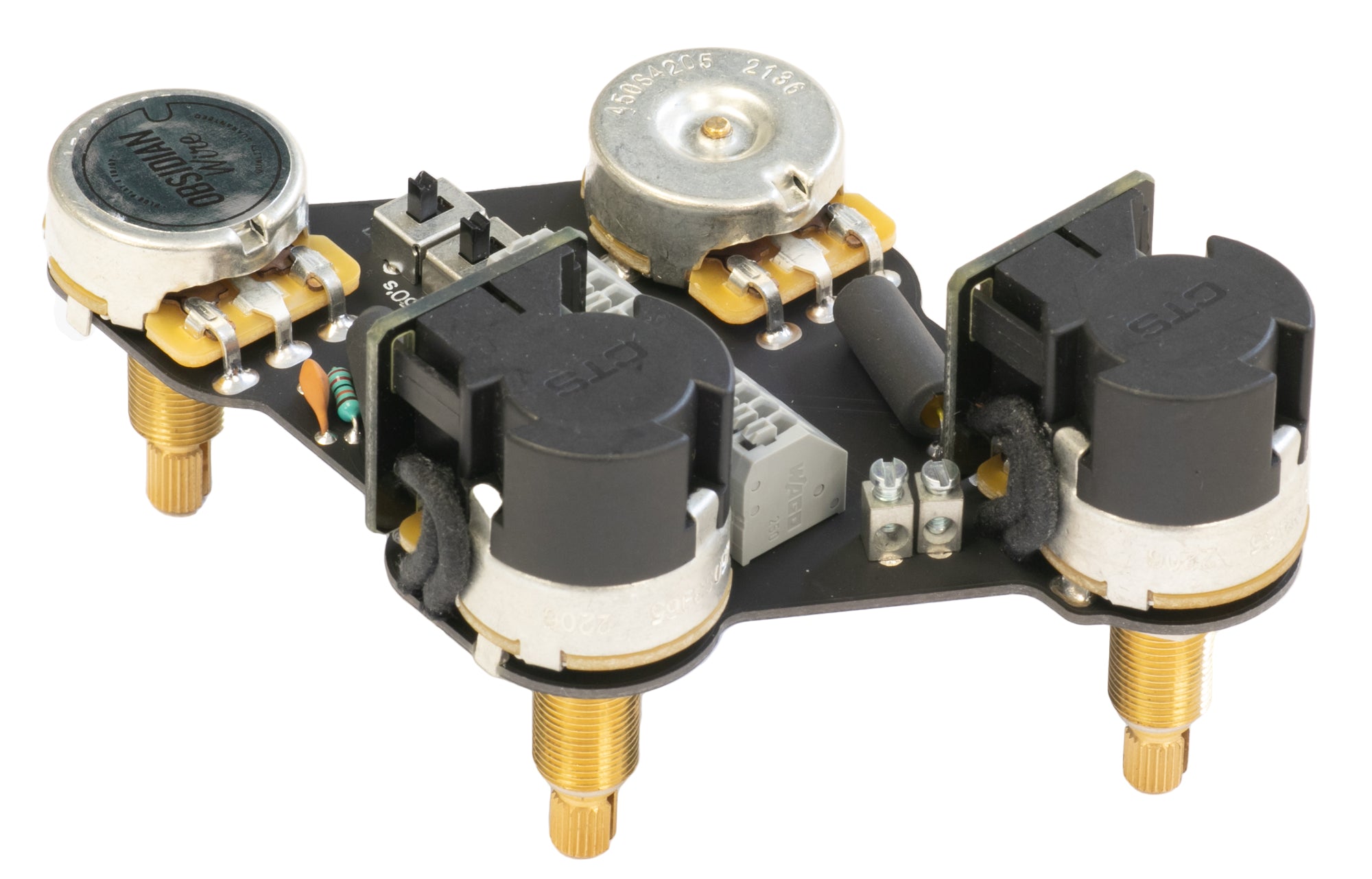

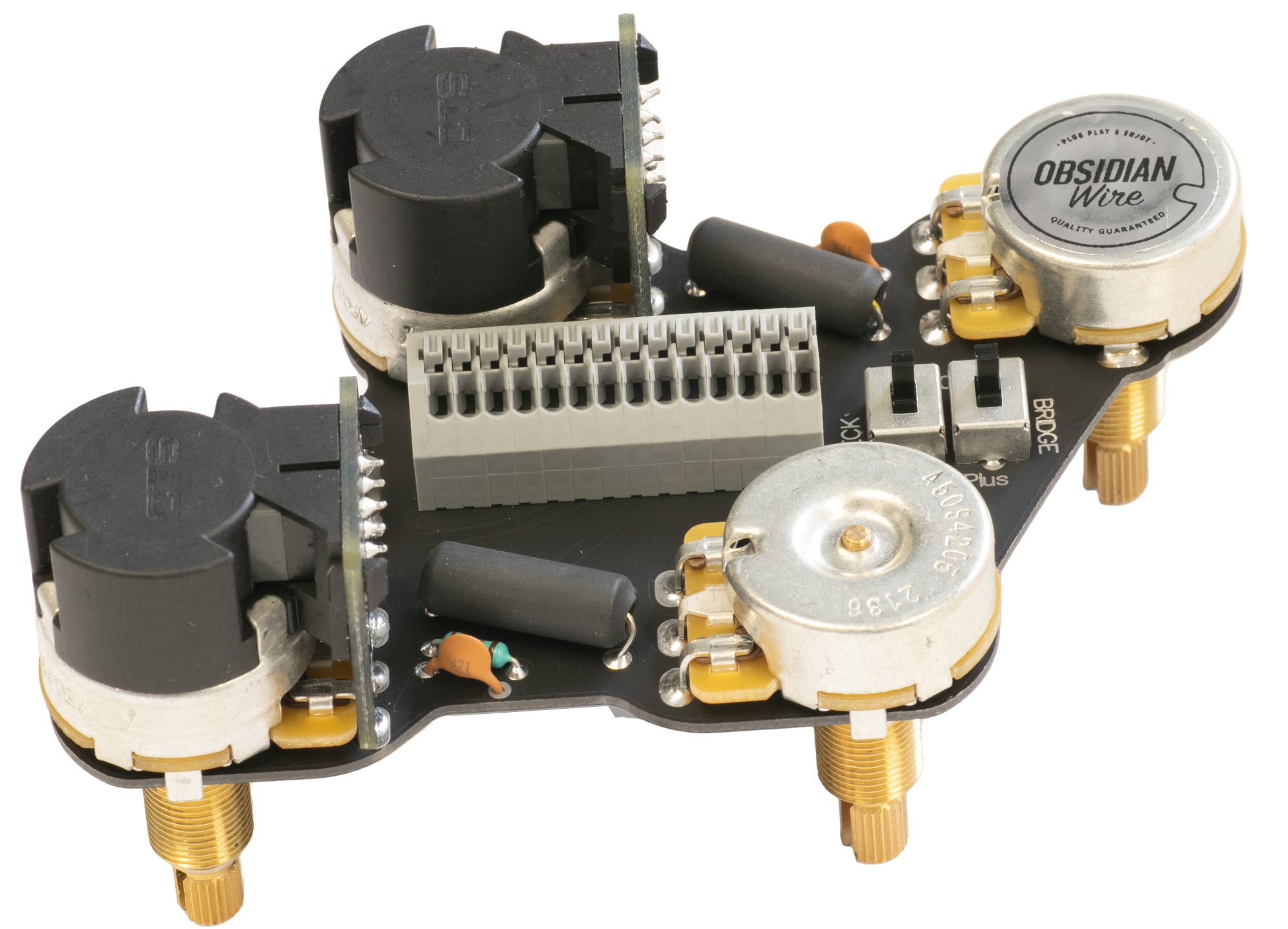

    DUAL SC (COIL SPLIT)

    Turn your humbuckers in to single coils, and back again
    To add true versatility to your guitar we build in Obsidian® Dual SC, allowing you to split each of your humbuckers in to singlecoils for lower output, more dynamic tones.

    Obsidian® Dual SC is built in to your volume controls using push/pull pots, so no extra mods are required to your guitar.
    - Requires split coil compatible humbuckers

    BOTH SWITCHES DOWN

    • 1: Bridge Humbucker
    • 2: Bridge Humbucker + Neck Humbucker
    • 3: Neck Humbucker

    BOTH SWITCHES UP

    • 1: Bridge Single Coil
    • 2: Bridge Single Coil + Neck Single Coil
    • 3: Neck Single Coil

    NECK VOL. UP - BRIDGE VOL. DOWN

    • 1: Bridge Humbucker
    • 2: Bridge Humbucker + Neck Single Coil
    • 3: Neck Single Coil

    NECK VOL. DOWN + BRIDGE VOL. UP

    • 1: Bridge Single Coil
    • 2: Bridge Single Coil + Neck Humbucker
    • 3: Neck Humbucker


    MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)
    MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)
    ObsidianWire Les Paul Wiring Harness - Solderless Install (Vintage MKII) Dual Split Coil
    MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)
    ObsidianWire Pro-Wired Les Paul Switch
    MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)
    MKII for Les Paul® (Vintage 50s & Modern 60s Wiring) MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)

    A Complete Wiring Upgrade - for Les Paul®

    The MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)

    • Selectable 'Vintage 50's' / '60's Plus' Wiring
    • Smoother Volume & Tone Control
    • Dual 'Split Coil' Upgrade Option
    • Includes Pro-Wired™ Switch & Jack
    • Fits Gibson® LP®
    • Fits Most Epiphone® LP® with adjustments

    Details

    Description

    ObsidianWire solderless install logo

    Super Easy, Solder-less Install
    All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



    "New for 2023

    Add the 'Dual 'Split Coil' Upgrade Option' - add a push/pull coil tap switch to each volume control. *Requires Compatible Split Coil (Four Conductor) Pickups"

    The ObsidianWire™ Les Paul® Wiring Harness

    The Obsidian® Vintage MKII for Les Paul® is a comprehensive upgrade over stock wiring, that also combines 'Vintage 50's' and '60's Plus' wiring in one product. You can choose between the vintage roll back of the traditional 'Vintage 50's' harness, and superior clarity of the more modern '60's Plus' wiring with the flick of the switch.

    You get a switch for each pickup, so if you want to run a 'Vintage 50's' setup on the neck pickup, and an Obsidian® '60's Plus' setup for the bridge pickup, YOU CAN.

    We also give you the option to upgrade to 'DUAL SC (COIL SPLIT)' for even more versatility

    'VINTAGE 50'S' MODE

    Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.

    The 'Vintage 50's' wiring mod is a super popular Les Paul wiring upgrade that reverts your stock LP wiring back to the glory days, and the beginning of the Vintage Les Paul. This is our most popular and personal favorite Les Paul wiring.

    '60'S PLUS' MODE

    Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.

    The Obsidian® '60's Plus' wiring is made for clarity and cut through with an improved circuit that will help you retain treble at all volume levels.

    For a full run down on different Les Paul wiring types, check out our full guide - Click Here

    DUAL SC (COIL SPLIT)

    Turn your humbuckers in to single coils, and back again
    To add true versatility to your guitar we build in Obsidian® Dual SC, allowing you to split each of your humbuckers in to singlecoils for lower output, more dynamic tones.

    Obsidian® Dual SC is built in to your volume controls using push/pull pots, so no extra mods are required to your guitar.
    - Requires split coil compatible humbuckers

    BOTH SWITCHES DOWN

    • 1: Bridge Humbucker
    • 2: Bridge Humbucker + Neck Humbucker
    • 3: Neck Humbucker

    BOTH SWITCHES UP

    • 1: Bridge Single Coil
    • 2: Bridge Single Coil + Neck Single Coil
    • 3: Neck Single Coil

    NECK VOL. UP - BRIDGE VOL. DOWN

    • 1: Bridge Humbucker
    • 2: Bridge Humbucker + Neck Single Coil
    • 3: Neck Single Coil

    NECK VOL. DOWN + BRIDGE VOL. UP

    • 1: Bridge Single Coil
    • 2: Bridge Single Coil + Neck Humbucker
    • 3: Neck Humbucker


    Specs

    BUILT IN HOUSE WITH

    • Potentiometers: Obsidian® Custom CTS® 500k Pots (+/-10%) Split Shaft / 24 Spline
    • Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)

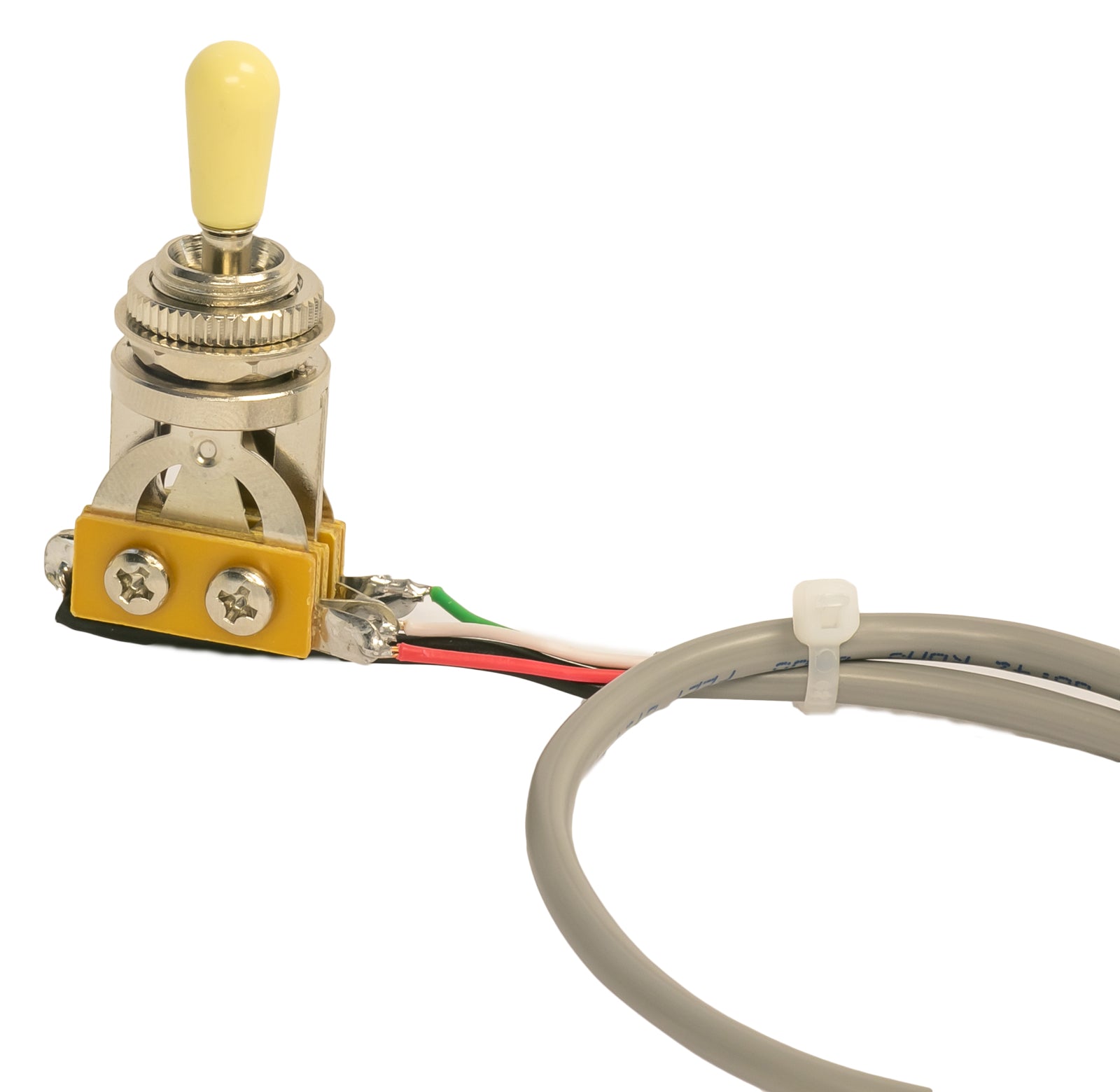

    • Switch: Obsidian® Select Pro-Wired Toggle Switch
    • Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

    Compatibility

    MADE TO FIT

    • Gibson® Les Paul®
    • MOST Epiphone® Les Paul® (Requires new knobs and wider holes as below)

    • Always Check: Layout Guide
    • Hole Size: 3/8" (9.5mm) mounting holes
    • Knobs: Use Only US spec 24 spline knobs (Do NOT use metric / 'Import' style knobs
    • Pickups: Works with Humbuckers and P90s // with modern or vintage braided wires.
    • Coil Splitting: Requires Compatible four conductor pickups

    DOES NOT FIT

    • Does NOT fit: Lefty, three pickup Les Paul®, or any other guitar or Les Paul® Copy.

    Install

    For install help and other resources please go to our Info Hub.

    Shipping



    Holiday Shipping: Expect shipping delays

    The team will be taking a hard earned break over the Christmas / New Years period.

    US Orders:

    Standard in stock US orders will ship as usual. Please expect delays due to order volumes.

    Custom shop items will start to ship when we return on the 6th January 2025

    All Other Orders:

    Orders will not ship until we return on the 6th of January 2025. Please expect and allow for delays.



    Where We Ship To

    We are currently shipping direct to:

    • United States
    • Australia
    • Brazil
    • Canada (Custom Shop only)
    • Hong Kong
    • Iceland
    • Indonesia
    • Isle Of Man
    • Malaysia
    • New Zealand
    • Norway
    • Philippines
    • Saudi Arabia
    • South Korea
    • Switzerland
    • Taiwan
    • United Kingdom

    For other countries - See International Dealers. If your country is not listed, and there is no dealer near you, please get in touch with us.

    All shipping costs and delivery options are calculated at checkout.

    Shipping Costs and Timeframes

    Shipping costs and delivery timeframes are calculated at checkout and will vary depending on delivery location and carrier selected.

    Where We Ship From

    United States

    Standard Orders

    Ship from Michigan, USA

    Please note that due to the way in-state taxes are collected, we cannot ship website orders within Michigan state. If you are based in Michigan, please get in touch with one of our dealers. Apologies for any inconvenience caused.

    Custom Shop Orders

    (Pro-Wired™ Loaded Pickguards and Custom Loaded Control Plates)

    Ship Direct from Christchurch, New Zealand

    All ObsidianWire™ Loaded pickguards and customised control plates are made to order and ship direct from our location in Christchurch, New Zealand. We have an expected build time of 1-3 business days, and will let you know if we expect any delays.

    Rest of World

    Ship Direct from Christchurch, New Zealand

    We ship all orders outside of the United States, from our workshop in Christchurch, New Zealand.

    Taxes and Duties

    ObsidianWire® DOES NOT pay duties, taxes or customs clearance charges.
    Duties and taxes charged by your local customs agency, will be your own responsibility.
    If you live outside the USA, we recommend checking with your own country's customs agency what these may be prior to ordering.
    If you are concerned, consider ordering from dealer near you

    International Dealers

    • Solderless Install

      Super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

    • Pro-Grade Quality

      The absolute best guitar wiring upgrades, using custom specified parts and perfected techniques to ensure that your harness will be an upgrade for you and your guitar. Every time.

    • Greater Functionality

      Guitar electronics that will deliver a greater range of sounds from your pickups, with more switching options, and more dynamic setups to suit your guitar.

    • Improved Sound

      Guitar wiring that allows the full dynamic range of your pickups, and just as importantly, help find a harness that is matched to you.

    Customer Reviews

    Based on 118 reviews
    83%
    (98)
    7%
    (8)
    4%
    (5)
    3%
    (3)
    3%
    (4)
    C
    Chase Parker (Los Angeles, US)
    Install Time: 20 - 30 minutes
    Build Quality:
    Very bad
    Excellent
    Functionality:
    Same as stock
    Greater range of sounds
    Sound:
    Terrible
    Amazing
    Love it

    I had the 50s coil split previous version, this is better. Specially the pots feel much smoother, and it turns out I prefer the 60s wiring better too.

    A
    Anonymous (Norfolk, US)
    Install Time: 1 Hour +
    Build Quality:
    Very bad
    Excellent
    Functionality:
    Same as stock
    Greater range of sounds
    Sound:
    Terrible
    Amazing
    Fantastic

    Love this. The clarity and range of sounds is just unbelievable. Took me a bit longer to install because I had to drill out the pot holes on my Epiphone because they were too small, so just beware of that possibility. Other than that, I would 100% recommend. Worth every penny.

    User picture
    m
    michael bromley (Perth, AU)
    Install Time: 30 - 60 minutes
    Build Quality:
    Very bad
    Excellent
    Functionality:
    Same as stock
    Greater range of sounds
    Sound:
    Terrible
    Amazing
    Les Paul wiring

    Excellent quality guitar sounds amazing now awesome product

    K
    Kevin Craig (Southbridge, US)
    Install Time: 1 Hour +
    Build Quality:
    Very bad
    Excellent
    Functionality:
    Same as stock
    Greater range of sounds
    Sound:
    Terrible
    Amazing
    MKII for Les Paul® (Vintage 50s & Modern 60s Wiring)

    The Item itself works great, The wiring can be tricky, you need patience. It fits "most Epiphones". I have a 2010 Les Paul Standard and I had tp drill out the body, as indicated, and install it backward in order to fit. The wiring diagram are ok. I also included new humbuckers. On those, there is no indication that you need to take off the shrink tubing and separate the black an white wires for split coil operation, but I figured it out.

    G
    Gary Petersen (Washington, US)
    Install Time: 20 - 30 minutes
    Build Quality:
    Very bad
    Excellent
    Functionality:
    Same as stock
    Greater range of sounds
    Sound:
    Terrible
    Amazing
    Great Buy!!!!

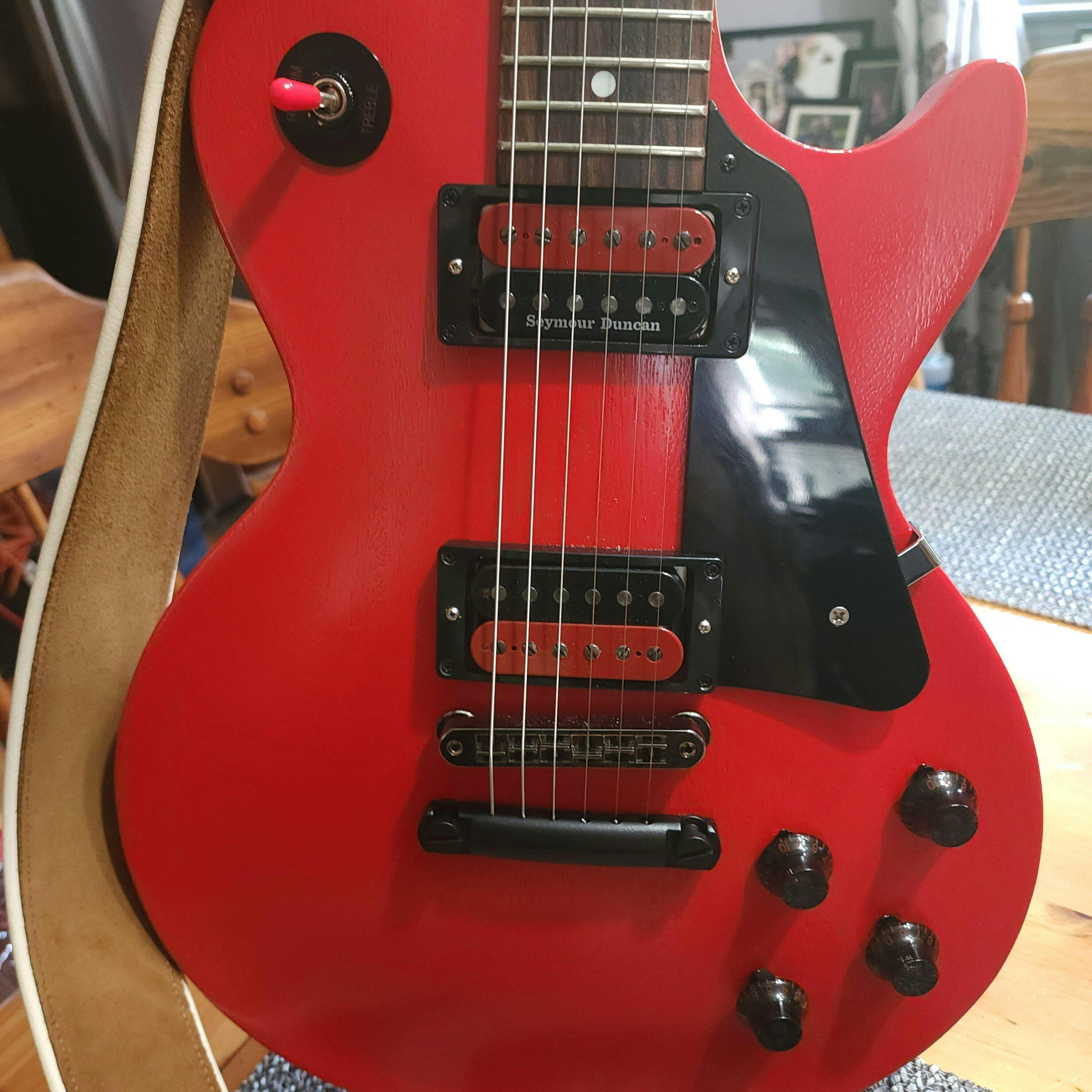

    I bought for my 2016 Epiphone LP Studio. Reamed out the Holes for the Pots and I installed in less than 30 minutes. I suggest ,if you do not have the correct knobs, buy them with this wiring kit. NO Problems at all. sounds Great.
