The Custom Universal for Tele® Wiring Harness®

FOR HUMBUCKER LOADED TELECASTERS®

 Traditional 3-Way Tele® switching
Built for Humbucker Loaded Telecasters
 4 Optimized Modes (HH, HS, SH & SS)
 Improves clarity for humbuckers
Balances single coils

 Fits Fender® Telecaster®
 Fits Squier® Telecaster® with adjustments

Obsidian® Coil Split - Upgrade Option

You can add even more versatility to your coil split compatible humbuckers with the Obsidian® coil split upgrade. This replaces the tone control with a push / pull pot for splitting your humbuckers to single coils, and back again.

NOTE: Coil split requires compatible - four conductor pickups

Super Easy, Solder-less Install

All ObsidianWire Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with ObsidianWire Plug, Play & Enjoy connectors.

FOR HUMBUCKER
LOADED TELECASTERS®

This wiring harness is a universal model made to be a perfect set for your humbucker loaded Telecaster, with an added fourth mode for two single coils for ultimate versatility.

Just select your mode from the Obsidian Smart switch, and you are set.

This harness is the perfect match for you if you have Telecaster loaded with the below pickups

Mode 1. HH Tele® (Humbucker + Humbucker)

Mode 2. HS Telecaster (Humbucker Neck + Single Coil Bridge)

Mode 3. SH Telecaster (Humbucker Bridge + Single Coil Neck)

Mode 4. SS Tele® (Two Single coils / traditional Tele® mode)

Why have different modes?

Humbuckers and single coils have different characteristics that require different things from a wiring harness to really let out their best qualities.

The Obsidian® Universal for Tele® harness allows you to easily setup your harness to automatically optimize the controls for each switch position, and thus, each of your pickups.

500k Controls for your humbuckers - Clearer, fuller humbucker output. More resistance through your tone and volume controls means less treble escapes.

250k Controls for your single coils - Balanced single coil spank. The harsh highs of a raw single coil are sent to ground, leaving a harmonically rich but balanced single coil sound.

The Four Modes Explained

MODE 1: HH Telecaster (Two Humbuckers)

Turn the dial to 'HH' for your Telecaster loaded with double humbuckers. You will get an optimized set of tone and volume controls with 500k pots, and a 0.022uf capacitor, for full clear output in all three switch positions.

Master Volume & Tone controls: (500k for full clear output)

MODE 2: HS Telecaster (Humbucker Neck + Single Coil Bridge Pickup)

Turn the dial to 'HS' for your Telecaster loaded with a humbucker in the neck position, and a single coil in the bridge position. You will get an optimized set of tone and volume controls with 500k pots for the humbucker for full clear output, and 250k pots for the single coil position to help tame the excess highs.

Switch Positions

1: Bridge Pickup (250k balances single coil highs)
2: Bridge + Neck Pickup (250k optimized for humbucker & single coil mix)
3: Neck Pickup (500k for full clear output)

MODE 3: SH Telecaster (Humbucker Bridge + Single Coil Neck Pickup)

Turn the dial to 'SH' for your Telecaster loaded with a humbucker in the bridge position, and a single coil in the neck position. You will get an optimized set of tone and volume controls with 500k pots for the humbucker for full clear output, and 250k pots for the single coil position to help tame the excess highs.

Switch Positions

1: Bridge Pickup (500k for full clear output)
2: Bridge + Neck Pickup (250k optimized for humbucker & single coil mix)
3: Neck Pickup (250k balances single coil highs)

MODE 4: SS Telecaster ( Two Single Coils)

Also perfect for Single coil sized humbuckers

Call this bonus mode, just in case you ever want to convert your Tele back to a traditional SS, or two single coil Telecaster. This mode will give you a set of standard 250k controls with a 0.022uf capacitor for balanced tone and volume controls.

This is also perfect for using single coil sized humbuckers, which are often designed to work best with 250k pots.

Master Volume & Tone controls: (250k for full clear output)

 CRYSTAL CLEAR TONE

To make your tone crystal clear at lower volumes we also include an Obsidian® Custom Spec Treble Bleed Mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

COMPONENTS

Potentiometers: Obsidian® Custom CTS® Pots (+/-10%) Split Shaft 24 Spline with 1/4" Adapters
Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)
Switch: Genuine Oak® 3 Way Switch

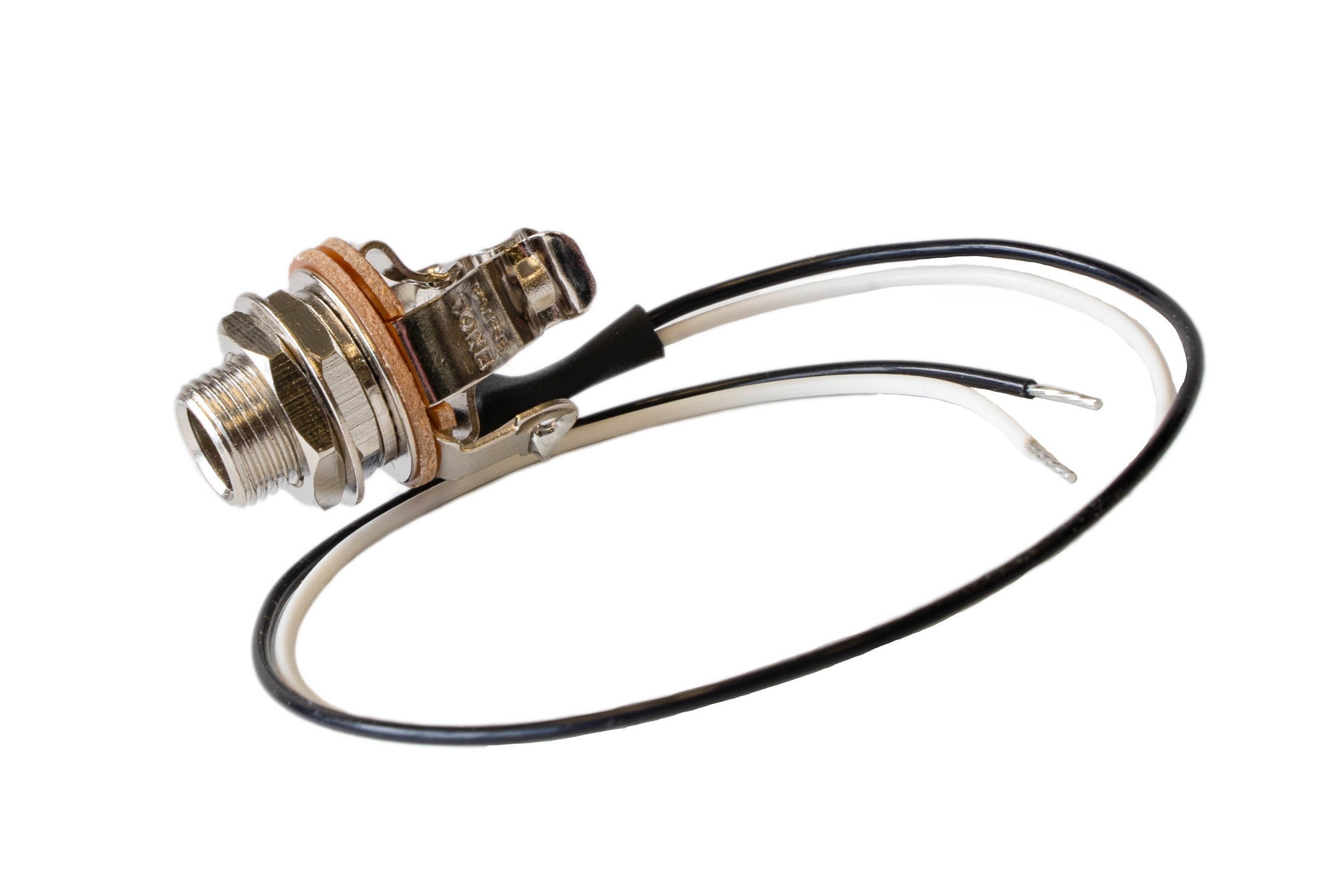

Jack: Pro-Wired Switchcraft® J11 Mono

COMPATIBILITY

American series Fender® Telecasters - Direct Fit
Mexican series Fender®  Telecasters - Direct Fit
Japanese Fender & Squiers - You will need to purchase a genuine Fender USA control plate and new 1/4" knobs or ObsidianWire Control plate & Knobs

Pickups: Works with Single coils, single coil sized humbuckers, humbuckers and P90s.

Coil Split Upgrade Requires compatible - Four Conductor Pickups

Does NOT Fit:

- Thinline Telecaster
- G & L ASAT -  May be fitted with adjustments to control slot size & new genuine Fender USA control plate and new 1/4" knobs or ObsidianWire Control plate & Knobs
 - Other Guitars - We cannot guarantee that these will fit any other guitar.

Note: Aftermarket control plates will NOT fit. We recommend a genuine Fender control plate – Part Number: 099-2058-000 or ObsidianWire Control plate

Use US spec 1/4" Solid shaft controls such as ObsidianWire Knobs . We recommend that you check your knobs are the correct size and replace them if necessary.


INSTALL

For install help, see our product support pages

Product Support

Pickup Wire Colors

Solderless Connector Help
