Obsidian®

ST Custom 7 G2

Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

Regular price
US$109.00
Regular price
Sale price
US$109.00

Super Easy, Solder-less Install
Key Features:

  • New 'Gen2' Model
  • Gilmour Mod  / '7-Way' Switching
  • Improved Tone Control Layout
  • Switchable Volume Control Voicings
  • Fits Fender® Strat®
  • Fits Squier® Strat® with Adjustments

  • Hurry, only 12 items left in stock!

FAST SHIPPING

5 YEAR WARRANTY

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



Custom 7 WAY Wiring for Strat®// Gilmour Mod

The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

7-WAY STRAT SWITCH // GILMOUR MOD

The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

'VOICE' SWITCHING

Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.

'CLEAR' MODE - Crystal clear tone at any volume level
'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch

OBSIDIAN® LAYOUT

Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.

Controls:

Tone Control 1: Middle & Neck Pickup (Works in positions 2 - 5)
Tone Control 2: Bridge Pickup (Works in positions 1 - 2)

GILMOUR SWITCH FUNCTION

'7 WAY' GILMOUR SWITCH ON (UP)

'7 WAY' GILMOUR SWITCH OFF (DOWN)

Bridge + Neck Bridge
Bridge & Middle + Neck Bridge & Middle
Middle + Neck Middle
Neck & Middle  Neck & Middle
Neck Neck


The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
Custom &
The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
Custom &

Gilmour Mod // 7-Way Wiring - for SSS Stratocaster®

The Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

  • New 'Gen2' Model
  • Gilmour Mod  / '7-Way' Switching
  • Improved Tone Control Layout
  • Switchable Volume Control Voicings
  • Fits Fender® Strat®
  • Fits Squier® Strat® with Adjustments

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



Custom 7 WAY Wiring for Strat®// Gilmour Mod

The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

7-WAY STRAT SWITCH // GILMOUR MOD

The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

'VOICE' SWITCHING

Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.

'CLEAR' MODE - Crystal clear tone at any volume level
'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch

OBSIDIAN® LAYOUT

Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.

Controls:

Tone Control 1: Middle & Neck Pickup (Works in positions 2 - 5)
Tone Control 2: Bridge Pickup (Works in positions 1 - 2)

GILMOUR SWITCH FUNCTION

'7 WAY' GILMOUR SWITCH ON (UP)

'7 WAY' GILMOUR SWITCH OFF (DOWN)

Bridge + Neck Bridge
Bridge & Middle + Neck Bridge & Middle
Middle + Neck Middle
Neck & Middle  Neck & Middle
Neck Neck


Specs

BUILT IN HOUSE WITH

Potentiometers: Obsidian®Custom CTS 250k Pots(+/-10%) Split Shaft / 24 Spline

Capacitors: (150 Series Polyester Film 0.022uf)(+/-5%

Switch: Oak® 5 Way Selector Switch

Jack: Pro-Wired Switchcraft J11 Mono

Compatibility

MADE TO FIT

Fender® Stratocaster®- Direct Fit // Right Hand Guitar Only

Squier® Stratocaster®- Widen Control holes to 10mm & replace knob

Always Check: Requires Minimum Cavity Depth Around Push Pull Pot 29.2mm / 1.15

Knobs:Requires US spec 24 spline knob

Pickups: Built for three single coil pickups

DOES NOT FIT

Left Handed Guitars // Any guitar not described above

Install

For install help and other resources please go to our Info Hub.

Shipping

Where We Ship

We are currently shipping direct to:

  • United States
  • Australia
  • United Kingdom
  • New Zealand
  • Hong Kong
  • Iceland
  • Norway
  • Switzerland

For other countries - See International Dealers

United States

Standard Orders

Ship from Michigan, USA

Please note that due to the way in-state taxes are collected, we cannot ship website orders within Michigan state. If you are based in Michigan, please order through our Amazon store here as this is set up to collect the required sales taxes. Apologies for any inconvenience caused.

Shipping method: Business days: Price (US$)
USPS TRACKED 3 - 5 6.99
FEDEX HOME DELIVERY 3 - 5 19.99
FEDEX EXPRESS SAVER 2 - 4 22.99
FEDEX EXPRESS SAVER 2 - 4 28.99

Pro-Wired Loaded Pickguards

Ship Direct from Christchurch, New Zealand

All ObsidianWire™ Loaded pickguards are made to order and ship direct from our location in Christchurch, New Zealand. We have an expected build time of 6 - 12 business days, and will let you know if we expect any delays.

Rest of World

Ship Direct from Christchurch, New Zealand

We ship all orders outside of the United States from our location in Christchurch, New Zealand. Get shipping cost and delivery timeframes at checkout.

Taxes and duties

Obsidian® DOES NOT pay duties, taxes or customs clearance charges.
Duties and taxes charged by your local customs agency, will be your own responsibility.
If you live outside the USA, we recommend checking with your own country's customs agency what these may be prior to ordering.
If you are concerned, consider ordering from dealer near you
International Dealers

  • Solderless Install

    Super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

  • Pro-Grade Quality

    The absolute best guitar wiring upgrades, using custom specified parts and perfected techniques to ensure that your harness will be an upgrade for you and your guitar. Every time.

  • Greater Functionality

    Guitar electronics that will deliver a greater range of sounds from your pickups, with more switching options, and more dynamic setups to suit your guitar.

  • Improved Sound

    Guitar wiring that allows the full dynamic range of your pickups, and just as importantly, help find a harness that is matched to you.

Customer Reviews

Based on 52 reviews
94%
(49)
2%
(1)
2%
(1)
0%
(0)
2%
(1)
S
Shane Lloyd
Install Time: 11 - 20 minutes
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing
Best solderless harness

This was incredibly easy to install. Great quality components, instructions AND one of my online mates knows the guy who started the company. I’d order another immediately if they had one to fit my SG!

The extra features are going to be extremely versatile once I wrap my mind around using them all.

K
Keegan Lippert (Bowling Green, US)
Install Time: 1 Hour +
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing

Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

A
Alistair Rankin
Install Time: 20 - 30 minutes
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing
Gen 2 solderless 7 position switch and pots

Great quality product and easy to install. I have my guitar back again sounding as it should. Very happy.
Still don't sound exactly like Gilmore but getting better every day!!!!!
Thank you Obsidian for an excellent product

B
Brandt Berntson (Worcester, US)
Install Time: 1 Hour +
Build Quality:
Very bad
Excellent
Functionality:
Same as stock
Greater range of sounds
Sound:
Terrible
Amazing

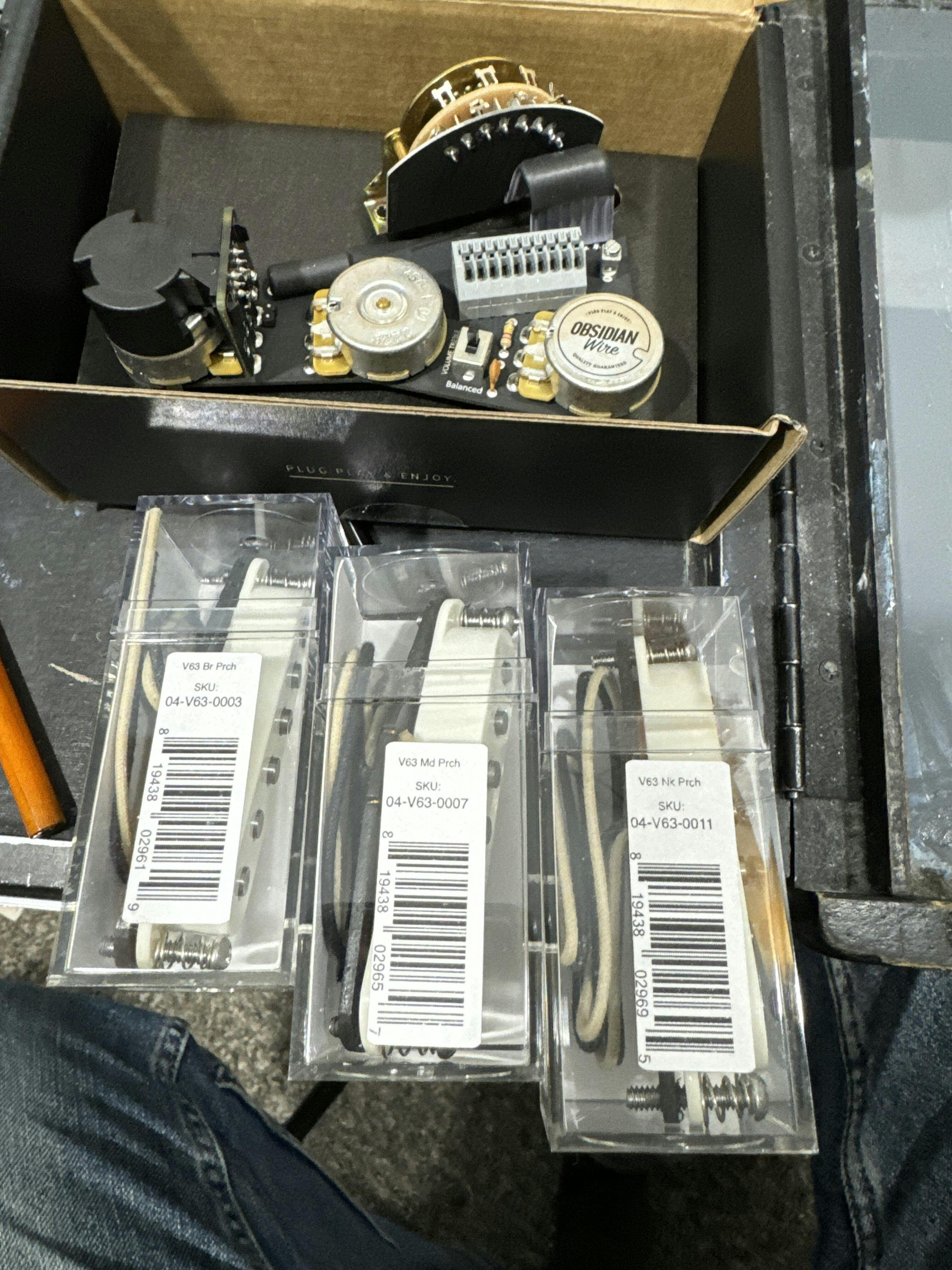

First time replacing pickups/wiring
