Gilmour Loaded Pickguard for Strat®

Regular price
US$329.00
Regular price
Sale price
US$329.00

The classic 'Black Strat' setup with a Gilmour inspired 7-Way & Overwound bridge pickup, pickguard build. Super Easy, Solder-less Install

  • Obsidian® 7-Way // Gilmour Mod Switching
  • Obsidian® Custom Shop Overwound Bridge Pickup
  • Tonerider® Pure Vintage Neck & Middle Pickups
  • Fully Shielded 1 Ply Black Obsidian® Pickguard
  • High Quality Obsidian® Knobs & Pickup Covers (Parchment)
  • Comprehensive Wiring & Pickup Upgrade

Custom Shop: Build Time 6 - 12 Days

Ships From: ObsidianWire, New Zealand

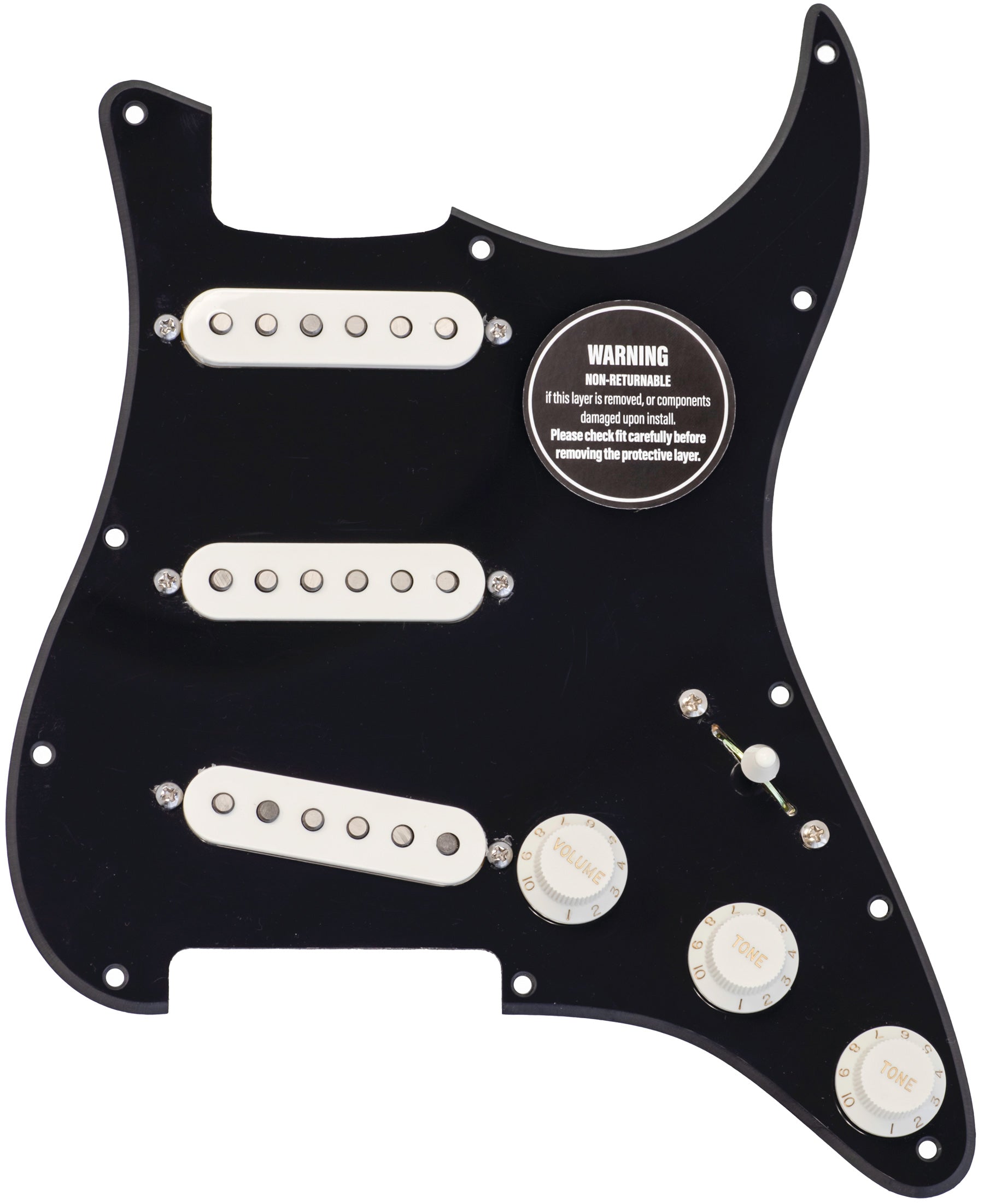

The ObsidianWire Gilmour loaded pickguard with 1 ply black pickguard and parchment white pickup covers and knobs

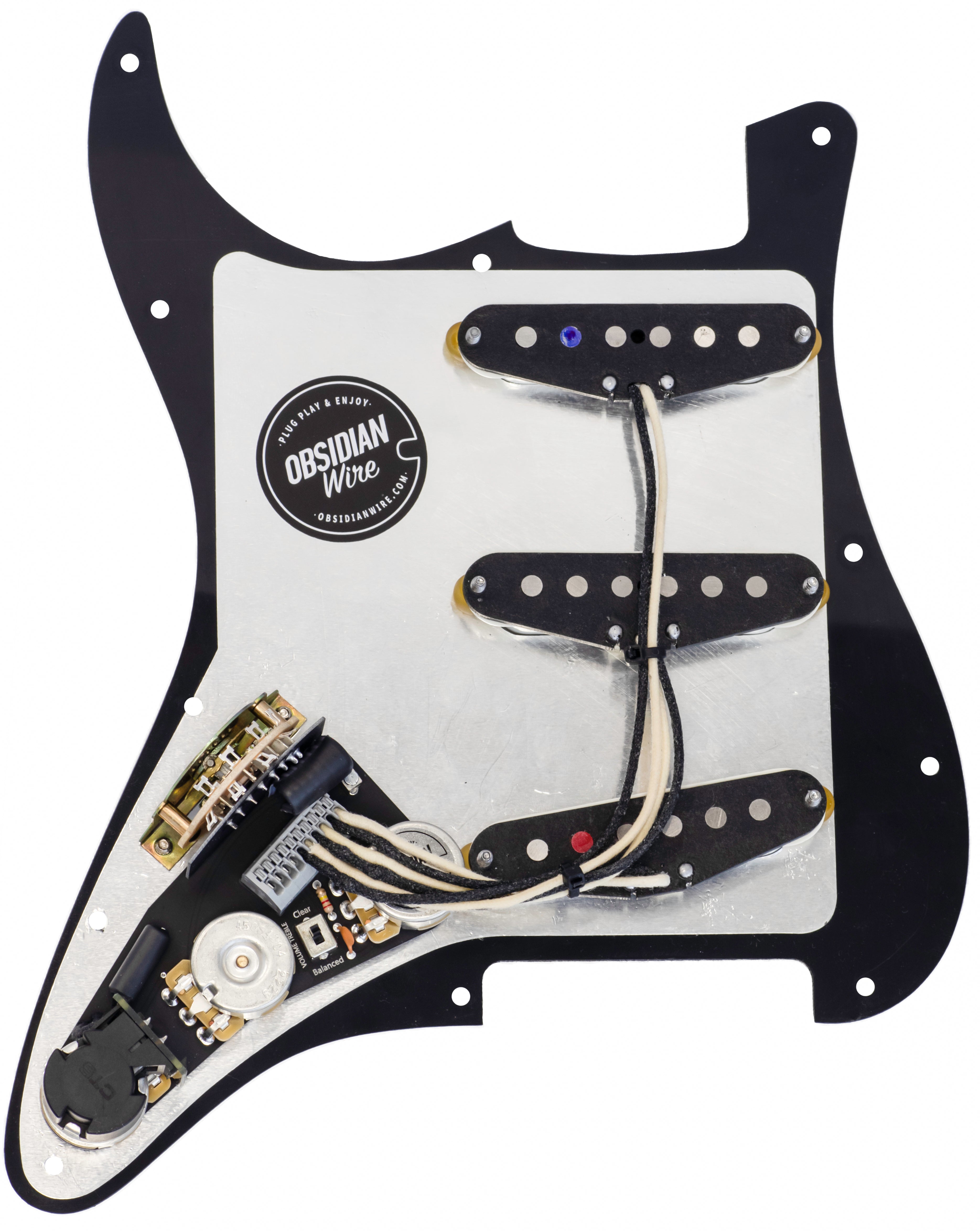

The ObsidianWire Gilmour loaded pickguard with 1 ply black pickguard with true vintage pickups and custom 7 way wiring harness
Gilmour Loaded Pickguard for Strat®
Gilmour Loaded Pickguard for Strat®
Gilmour Loaded Pickguard for Strat®

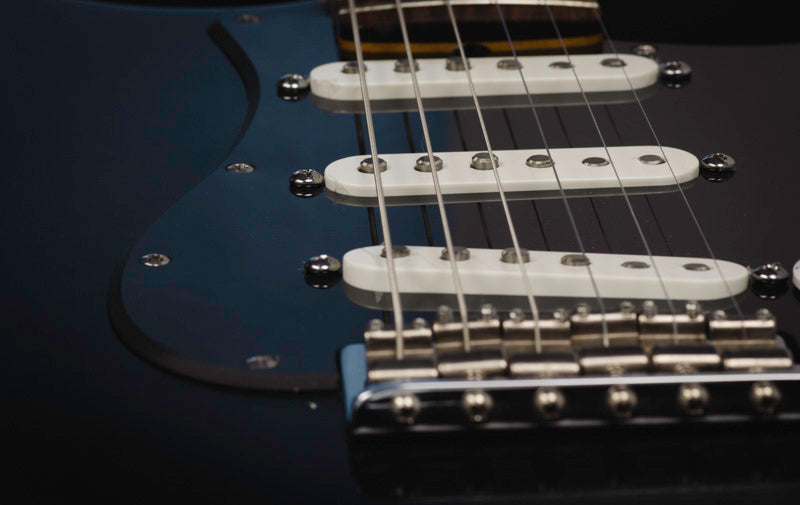

Gilmour loaded 1 ply black pickguard with parchment white pickup covers on a David Gilmour inspired black strat

You Design It, We Build It...

Gilmour Loaded Pickguard for Strat®

The classic 'Black Strat' setup with a Gilmour inspired 7-Way & Overwound bridge pickup, pickguard build. Super Easy, Solder-less Install

  • Obsidian® 7-Way // Gilmour Mod Switching
  • Obsidian® Custom Shop Overwound Bridge Pickup
  • Tonerider® Pure Vintage Neck & Middle Pickups
  • Fully Shielded 1 Ply Black Obsidian® Pickguard
  • High Quality Obsidian® Knobs & Pickup Covers (Parchment)
  • Comprehensive Wiring & Pickup Upgrade

More Info...

The Wiring

Custom 7 WAY Wiring // Gilmour Mod

This is our dedicated loaded pickguard for the Obsidian® Custom 7 Way wiring harness with '7-way' switching inspired by David Gilmour. It also features improved tone control layout, smoother tone and volume control response, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

The Gilmour Mod:

The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

More Info

The Pickups

ToneRider® Pure Vintage & ObsidianWire Custom Shop Overwound Bridge

Warm Gilmour Strat® Tones & Searing Leads

The Pure Vintage set from Tonerider is the perfect set for giving you those Vintage Black Strat tones that David Gilmour is famous for , along with a bridge pickup overwound in the ObsidianWire custom shop, that is perfect for those searing clean leads

Neck 5.9k / Mid 6.1k / Bridge 11.8k

More Info

The Look

Choose your favorite pickguard and knob combo.

Need inspiration?

Check out some of our favorite combos Here

The Install

Solderless Loaded Pickguard Install

Solderless Install

All Obsidian® loaded pickguards allow for a quick and easy solderless install using our own solderless Pro-Wired™ Electronics

Fitting

Loaded Pickguards (for Strat)

Obsidian® loaded pickguards for Stratocaster® are made to fit modern Fender Strat® bodies with 11 hole pickguards perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Pattern: Modern Fender 11 hole
  • Control Cavity Routing: Fits genuine Fender Stratocaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickup Cavity Routing: Check pickup compatibility before ordering. Humbucker loaded pickguards require full size humbucker routing.

Control Plates (for Tele)

Obsidian® loaded control plates for Telecaster® are made to fit modern Fender Tele® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Spacing: 150mm from center to center
  • Control Cavity Routing: Fits genuine Fender Telecaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickups: ObsidianWire Pro-Wired Electronics are generally made for standard two wire pickups. For different wire types select the Custom Universal harness. the Custom 4-Way harness requires a three wire neck pickup, or a solder join to add a new wire.

The Shipping

ObsidianWire Custom Shop Item:

This item is part of our Custom Shop range, built to order, one at a time in Christchurch New Zealand.

Build Time: 5 - 10 Business Days

We aim to build all custom shop orders within 5 - 10 business days (excludes weekends and public holiday). If we expect any delays we will let you know as soon as possible.

Shipping: Ships direct from Christchurch, New Zealand

All custom shop items ship direct from Christchurch, New Zealand. Please allow extra time for International shipping. Check for additional info on our shipping policies below

Shipping Policies
