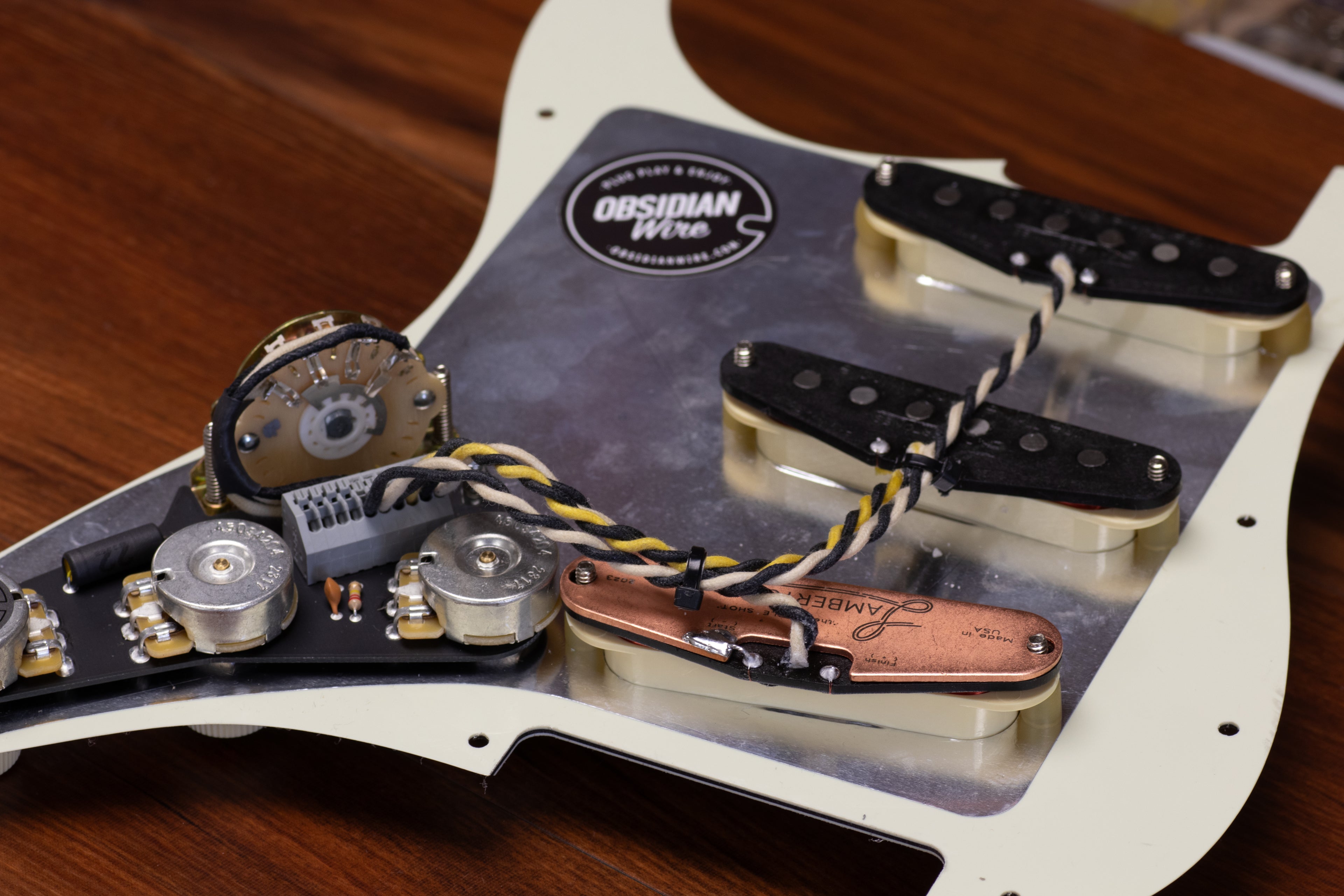

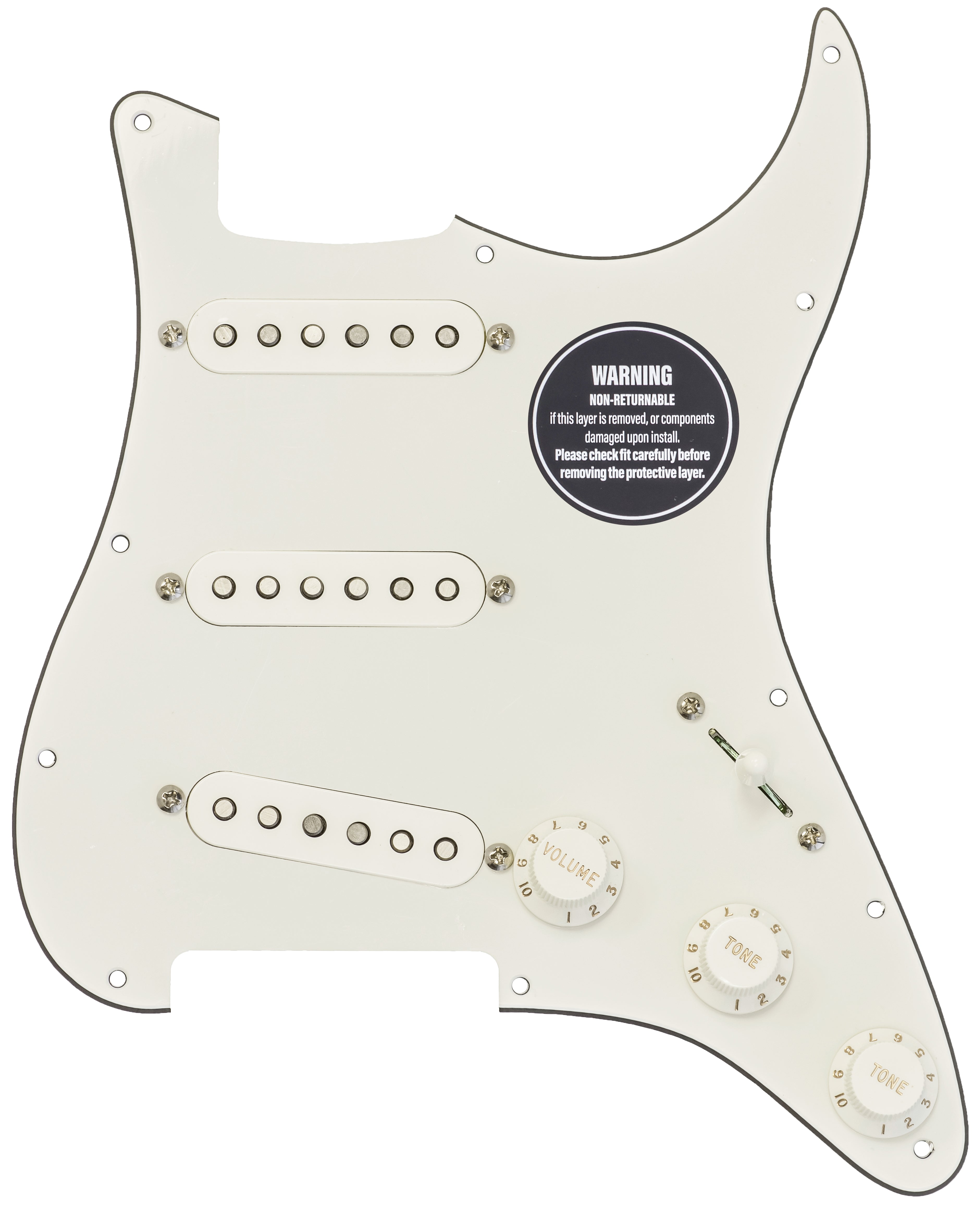

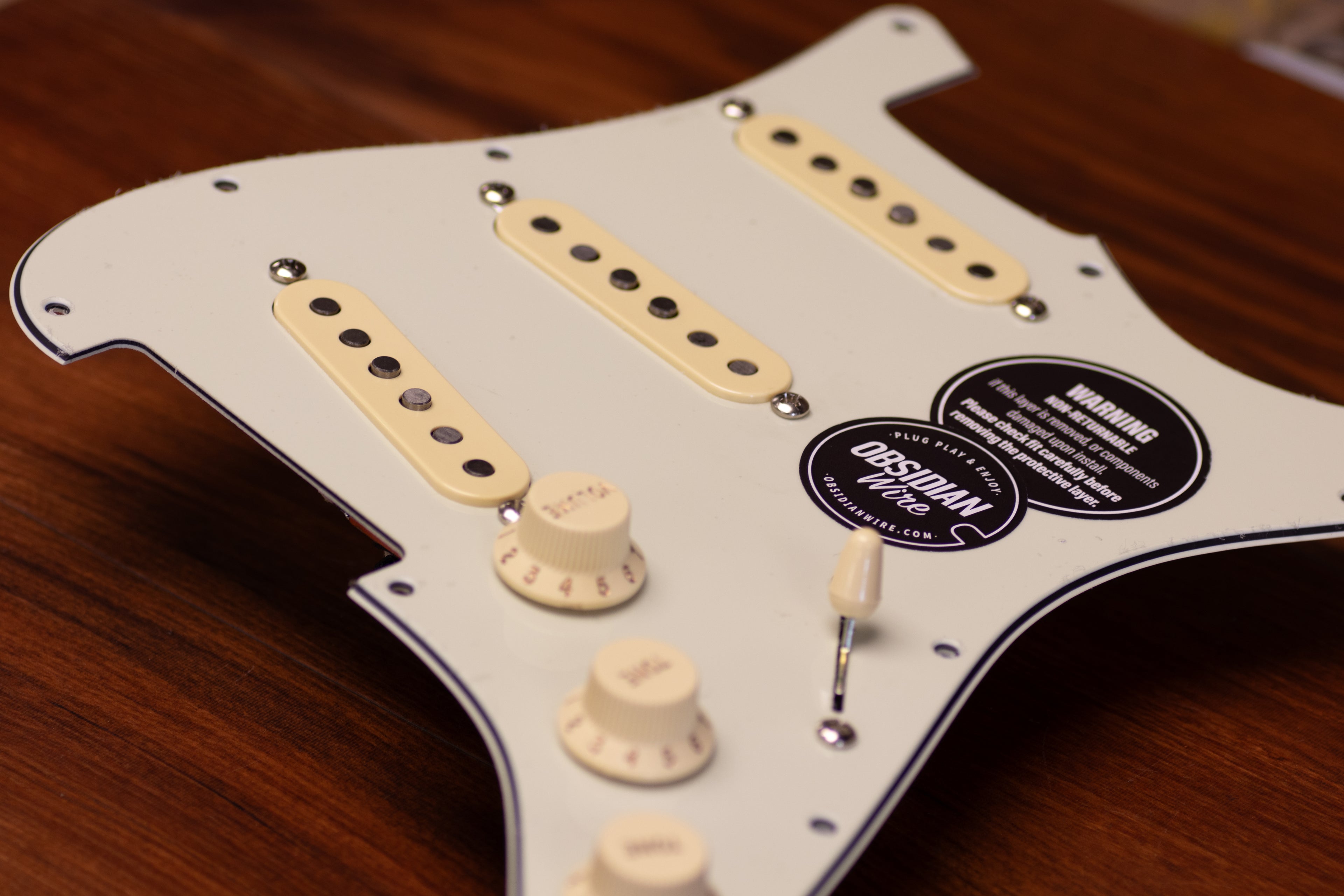

Mayer Loaded Pickguard for Strat®

Strat Blender Wiring Mod - for your Stratocaster®

PLAY YOUR NECK AND BRIDGE PICKUPS TOGETHER

The Obsidian® Custom Blender for Strat® is the solder-less, Strat blender wiring harness, with a Stratocaster® blender mod built in.

With a master volume and master tone control the Custom Blender Harness packs your traditional Strat® tones into a smaller space, leaving the third tone control free.

This becomes the blender control, adding the ability to blend the neck and bridge pickups in together. This is amazing for adding a range of musical mids to your lead tone (like the bell like effects David Gilmour gets in his signature Strat) or for adding some twang to your rhythm, just like you find in the middle position on a Tele®. When you need a complete wall of sound, you can even mix all three pickups together by flicking the five way switch to position 2 or 4

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SMOOTH CONTROL

An even tone and volume control taper all the way from zero to ten. Obsidian® tone and volume controls incorporate carefully selected and custom-built components, as well as our own clever mods to smooth out the taper of your tone and volume controls, so you get a more even roll off all the way from zero to 10.

BLENDER MOD CONTROLS

 Switch Positions Blender Control ON (Position 1)

1: Bridge + Neck
2: Bridge & Middle + Neck
3: Middle
4: Neck & Middle + Bridge
5: Neck + Bridge

When it is time to ease back to your traditional switch positions, simply roll the blender knob off, and it will remove itself completely from the circuit.

Switch Positions Blender Control OFF (Position 10):

1: Bridge Pickup
2: Bridge & Middle Pickup
3: Middle Pickup
4: Neck & Middle Pickup
5: Neck Pickup

Control Layout

Switch: 5 - Way
Control 1: Master Volume
Control 2: Master Tone (All three pickups)
Control 3: Blender Control (Adds Neck or Bridge)

Standard: ToneRider City Limits TRS2

Fat full Texas neck and middle mixed pickups with a hotter bridge, for deep bass and tempered bell-like trebles. This set is specially crafted for Hot Blues & Rock.

Neck 6.0k / Mid 6.1k / Bridge 8.9k

Deluxe: Lambertones Triple Shot Strat Set

The TRIPLE SHOT is based on John Mayer's favorite 1964 vintage Strat, but with enhanced clarity and consistency. Alnico magnets paired with a unique wire and tension combination produce beautifully smooth and velvety lead lines. The Triple Shot features a slightly chunky and springy low-end, clean and crisp highs, massive quack in positions 2/4, and all without a heavy and overbearing mid-range.

These take pedals surprisingly well and maintain incredible clarity even when you stack on the drives. Back to the basics, and they are so, so good.

Neck Single Coil Specs: 3.6k DCR

Middle Single Coil Specs: 4.15k DCR

Bridge Single Coil Specs: 3.95k DCR
